High-temperature inductive sensors up to 250°C

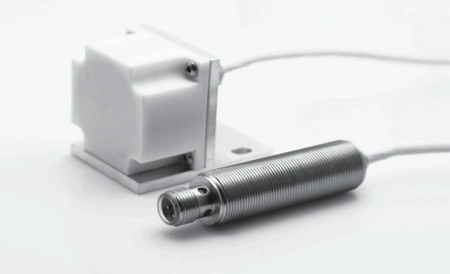

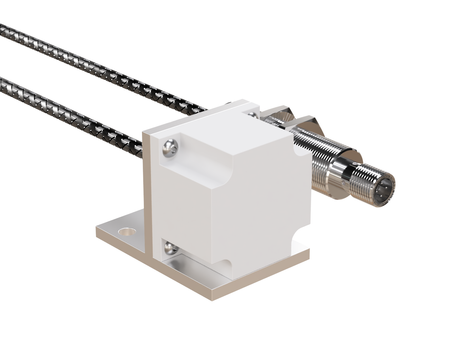

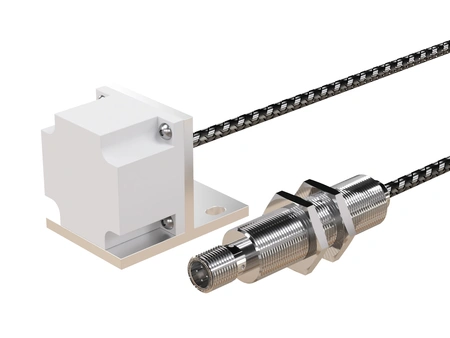

Inductive sensor for high temperatures (250°C) with remote electronics. Ideal for paint shops, furnaces, and heat treatment.
Read more
Add products by adding codes
Add a CSV file
Enter the product codes that you want to add to the cart in bulk (after a comma, with a space or from a new line).
Repeating the code many times will add this item as many times as it appears.
Inductive sensor square Q8 length 60 mm Connector M8 PNP NO & NC & NC Sn = 3 mm sensing center
Symbol:
NHTQ40006
Inductive sensor square Q8 length 60 mm Connector M8 PNP NO & NC & NC Sn = 3 mm sensing center
- NIQ08156
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NHTQ40006
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Q40
Switching distanceMore
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
25 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO & NC
Electrical data
Operating voltage
10–30 V DC
No load current
<20mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.5 ms
Switching frequency
300 Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Square
Housing material
PTFE/AI/V2A
Material active face
Teflon
LED display
YES

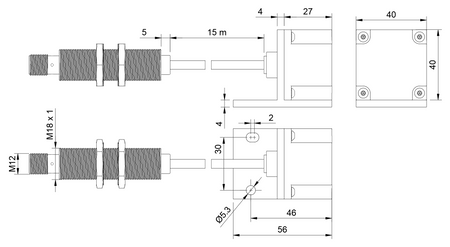

Dimensions
40 x 40 x 56
Sensor length
56 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
15 m
Operating conditions
Protection category
IP67
Operating temperature min
0℃
Operating temperature max
+250℃
Inne
Manufacturer code
NHTQ40006
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
