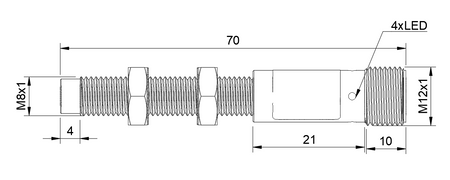

Inductive sensor M8 Metal face 70 mm connector M12 PNP NC Sn = 2 mm
- ● M8 designed for environments requiring reliability and durability
- ● For use in expanded system configurations
- ● Proven sensing range for general use
- ● Stable in harsh environments
- ● Plug-in version – ideal for industrial applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NMF08214
An industrial inductive sensor NMF08214 with a stainless steel sensing face offers outstanding mechanical durability, high resistance to wear, and stable performance during intensive operation.
The M8 model allows easy integration into compact industrial systems and small-scale automation installations while maintaining high durability and long service life., The medium-size Ø8 x 70 mm format provides an excellent balance between compact dimensions and stable mounting performance.
Technical specification:
- Diameter: M8, stable construction designed for continuous industrial operation
- Length: 70 mm, larger threaded mounting surface for secure installation
- Sensing range: 2 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, full exposure of the sensing area for maximum detection performance
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: n/d
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- They provide accurate object detection in automated vehicle manufacturing systems.
- Used in automated material feeding and handling systems.
- Supports the automation of packaging and sorting processes.
- Detects the presence of components within robotic work zones.
- Supports equipment operating under high-duty cycle conditions.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- High detection accuracy in machining environments.
- Stable detection in high-throughput production processes.
- Fast detection in pick-and-place processes.
- Easy adaptation to different machine designs.
When to choose this model
- Provides an excellent balance between compact dimensions, robust construction, and high operational performance.
- Ensures stable performance under standard industrial operating conditions.
- Performs effectively in standard industrial installations and automated production systems.
- Supports quality control processes through consistent and accurate metal component detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
