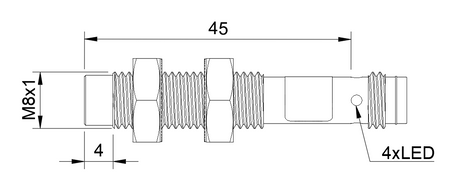

Inductive sensor M8 Metal face 45 mm connector M8 PNP NC Sn = 2 mm
- ● All-metal M8 construction, designed for harsh working conditions
- ● Compact solution for precision applications
- ● Proven distance for standard setups
- ● Extreme wear resistance
- ● Plug-in version – easy installation and quick connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NMF08134
An industrial inductive sensor NMF08134 with a stainless steel sensing face offers outstanding mechanical durability, high resistance to wear, and stable performance during intensive operation.
The miniature M8 design simplifies integration into industrial automation systems with limited available space while providing increased resistance to external damage., Ø8 x 45 mm sensors feature a small form factor that enables installation in space-limited applications.
Technical specification:
- Diameter: M8, standard diameter of inductive sensors
- Length: 45 mm, stable mechanical construction for reliable operation
- Sensing range: 2 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
- Ensures accurate positioning of machine axes and moving machine components.
- Monitors the operation of labeling and dispensing machines.
- Integrated into automated assembly and manufacturing systems.
- Detects position in industrial material handling and conveyor systems.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- Fast response in dynamic machining processes.
- Easy integration with dosing and labeling machines.
- Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
- Easy adaptation to different machine designs.
When to choose this model
- Designed for stable and precise detection of metal components in industrial environments.
- Designed for medium and lightweight industrial loads with high resistance to mechanical wear.
- Performs effectively in standard industrial installations and automated production systems.
- Suitable for applications with stable operating conditions and demanding reliability requirements.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
