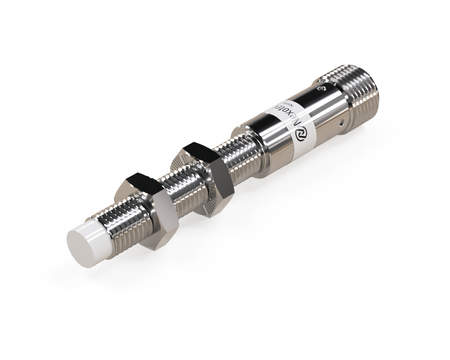

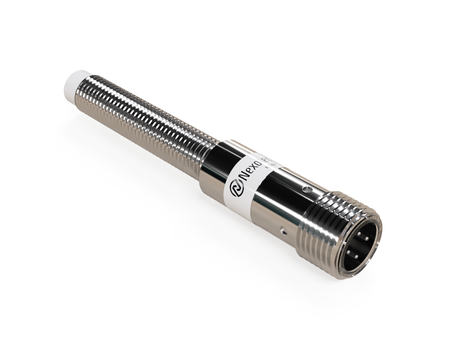

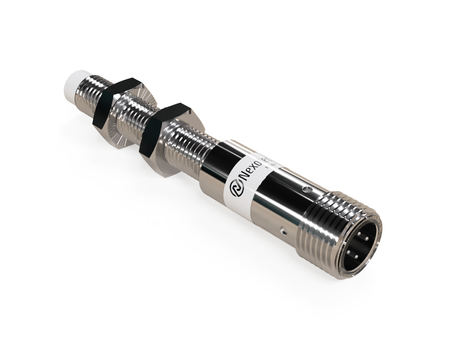

Inductive sensor M8 70 mm connector M12 NPN NO Sn = 6 mm
- ● M8 simplifies component placement in systems
- ● Long design for wide systems
- ● Sensor with extended detection field
- ● Plug-in – splash- and water-resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS08851
An inductive sensor NIS08851 for industrial applications with a Teflon sensing face stands out for its high mechanical resistance and stable operation.
Thanks to reduced dimensions, M8 sensors can be easily integrated into compact control systems., Ø8 x 70 mm sensors offer small dimensions allowing installation in limited space.
Technical specification:

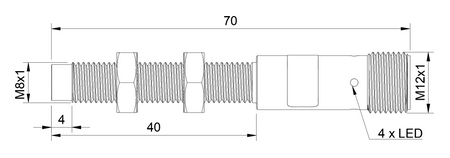

- Diameter: M8, good compromise between size and detection range
- Length: 70 mm, designed for demanding operating conditions
- Sensing range: 6 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Detection of elements in automated vehicle production systems.
- Monitoring of processes in machining centers.
- Control of labeling and dosing machines.
- Use in automation of pick & place processes.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Easy integration with robotic and PLC systems
- Resistance to coolants, oils and industrial contaminants
- Resistance to intensive cyclic operation
- Fast detection in pick & place processes
- Stable operation in high-duty cycle machines
When to choose this model
- Used in typical production lines and automation systems.
- Used in standard production processes.
- Suitable for a wide range of OEM applications.
- Used in quality control systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
