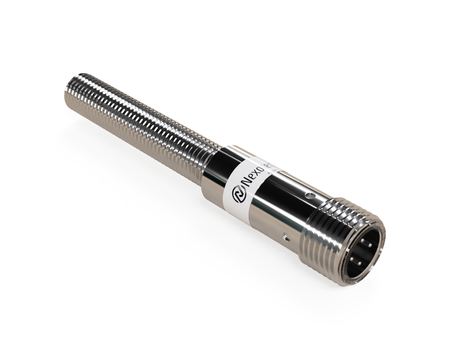

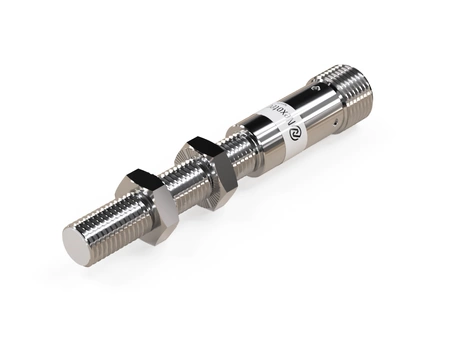

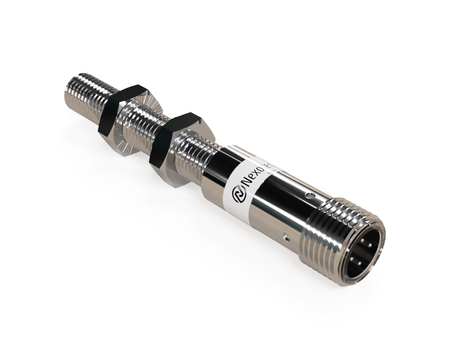

Inductive sensor M8 70 mm connector M12 NPN NC Sn = 3 mm
- ● Compact M8 for typical installations
- ● Long version for open mounting areas
- ● Sensor with extended detection field
- ● Plug-in – resistant to cleaning agents and chemicals
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS08842
A Teflon-faced inductive sensor NIS08842 ensures reliable operation in automation and process control systems.
M8 sensors offer an optimal balance of size and functionality in industrial installations., The medium-sized Ø8 x 70 mm format offers a compromise between size and mounting stability.
Technical specification:

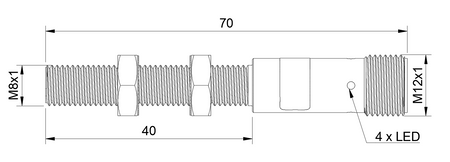

- Diameter: M8, wide compatibility with mounting brackets
- Length: 70 mm, used in large industrial installations
- Sensing range: 3 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Semi-flush mounting
- Switching function: NC, used in safety functions
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Position control of parts in automotive assembly lines.
- Position control of machine axes and working components.
- Application in forming and sealing machines.
- Use in automation of pick & place processes.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Signal repeatability in mass production processes
- Resistance to coolants, oils and industrial contaminants
- High precision positioning of elements in robotic systems
- Resistance to electromagnetic interference
When to choose this model
- Suitable for stable detection of metal parts.
- Performs well in continuous operation.
- Suitable for mass production.
- Used in systems of medium complexity.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
