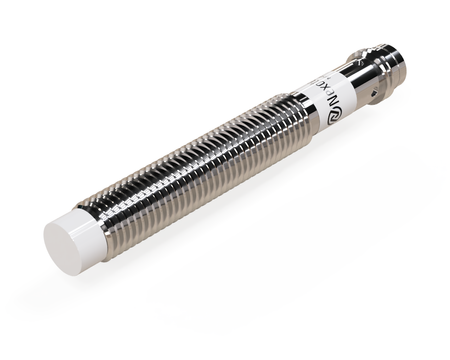

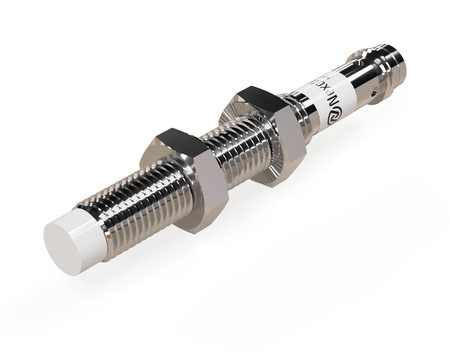

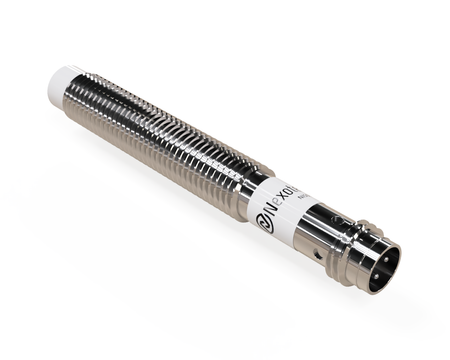

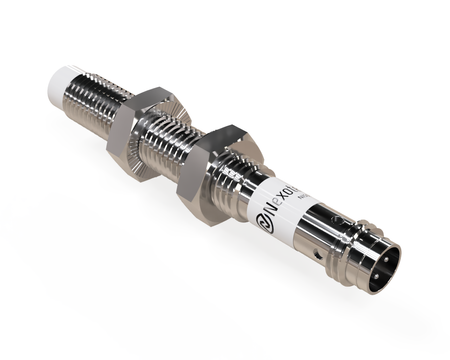

Inductive sensor M8 60 mm connector M8 NPN NC Sn = 6 mm
- ● M8 suitable for standard systems
- ● Extended version for stable embedding
- ● Sensor with enhanced operating range
- ● Plug-in – durable in harsh environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS08552 with a Teflon sensing face combines a compact design with high durability.
Thanks to their optimal size, M8 sensors can be integrated into many automation systems., The small Ø8 x 60 mm length allows installation in shallow working spaces.
Technical specification:

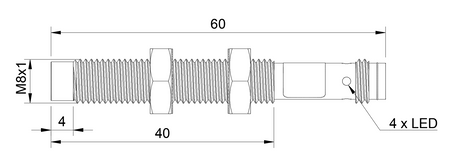

- Diameter: M8, stable construction for continuous operation
- Length: 60 mm, better resistance to vibration and stress
- Sensing range: 6 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Detection of workpieces before machining operations.
- Detection of metal elements and components in packaging systems.
- Detection of elements in robotic work zones.
- Application in machine safety and interlock systems.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- Resistance to intensive cyclic operation
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Used in standard OEM machines.
- Performs well in continuous operation.
- Used in systems with moderate operating dynamics.
- Performs well in standard installations.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
