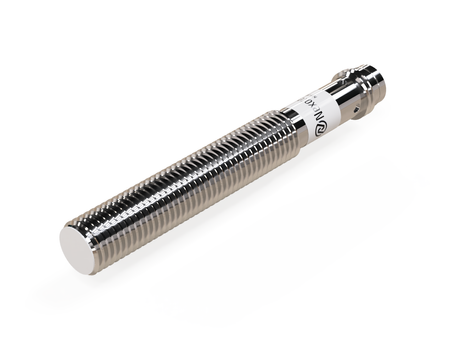

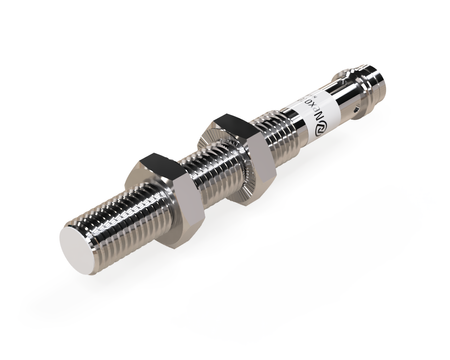

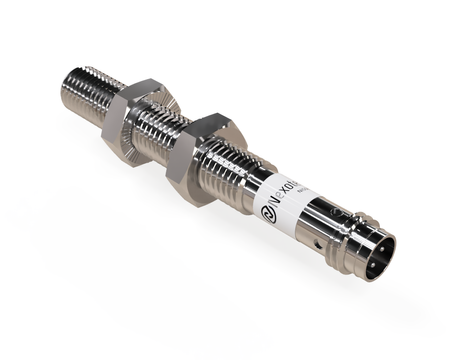

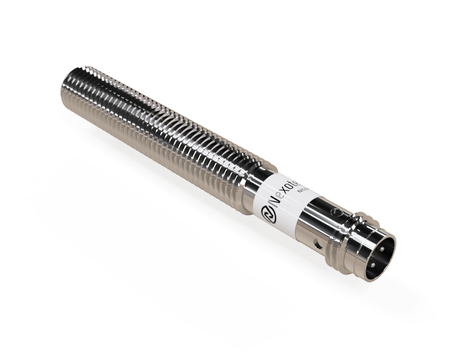

Inductive sensor M8 60 mm connector M8 NPN NC Sn = 3 mm
- ● M8 suitable for standard systems
- ● Longer module for expanded systems
- ● Sensor for detection over larger areas
- ● Plug-in – chemically and mechanically durable
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A Teflon-faced inductive sensor NIS08542 ensures reliable operation in automation and process control systems.

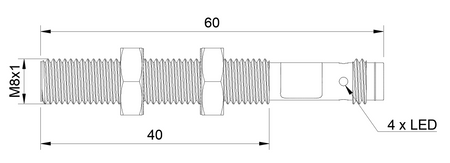

The compact M8 design enables efficient operation in limited mounting space., Ø8 x 60 mm sensors can be installed in narrow construction spaces.
Technical specification:
- Diameter: M8, stable construction for continuous operation
- Length: 60 mm, designed for demanding operating conditions
- Sensing range: 3 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT,
- Mounting: Semi-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Position control of parts in automotive assembly lines.
- Detection of workpieces before machining operations.
- Control of production line synchronization.
- Detection of elements in robotic work zones.
- Control of processes in complex mechanical systems.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- Resistance to coolants, oils and industrial contaminants
- Easy integration with dosing and labeling machines
- Resistance to frequent cycles and micro-vibrations
- Long service life in continuous operation
When to choose this model
- Often used in PLC systems and control automation.
- Suitable for multi-industry applications.
- Often chosen as a standard industrial sensor.
- Used in systems of medium complexity.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
