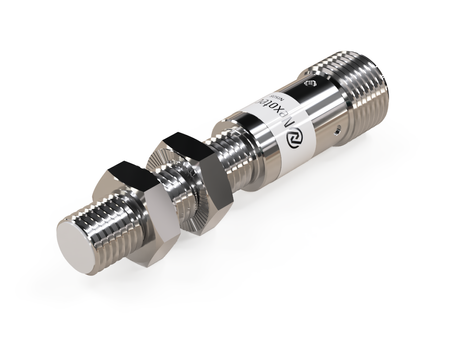

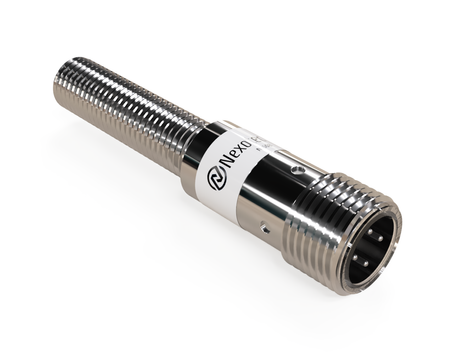

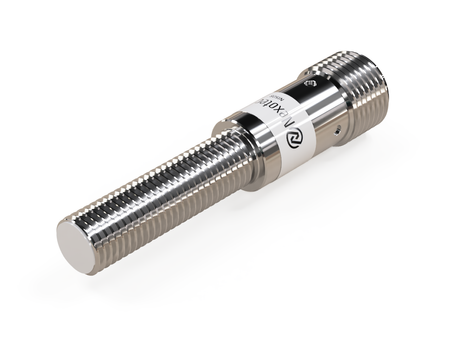

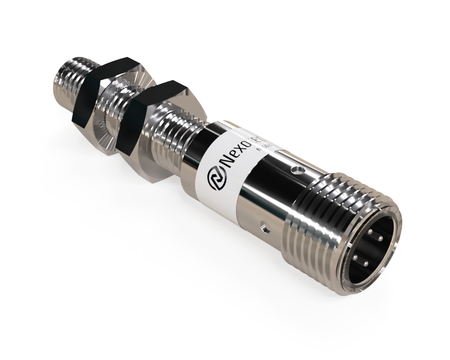

Inductive sensor M8 53 mm connector M12 NPN NO Sn = 3 mm
- ● M8 ideal for standard spaces
- ● Extended housing for large installations
- ● Sensor with greater detection distance
- ● Plug-in – resistant to dust and dirt
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS08741
A Teflon-faced inductive sensor NIS08741 ensures reliable operation in automation and process control systems.

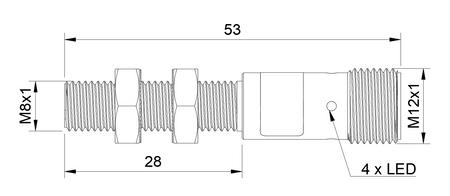

M8 sensors combine small size with high functionality in industrial applications., The Ø8 x 53 mm size enables installation in areas with limited depth.
Technical specification:
- Diameter: M8, good compromise between size and detection range
- Length: 53 mm, designed for demanding operating conditions
- Sensing range: 3 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, suitable for operation in humidity and contamination
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Semi-flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Detection of workpieces in machining fixtures.
- Application in packaging transport systems.
- Application in robotic systems for detecting element positions.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Precise detection of metal components in assembly processes
- Stable operation in dynamic automation systems
- Resistance to electromagnetic interference
When to choose this model
- Good compromise between size and functionality.
- Chosen for modernization of industrial machines.
- Ensures repeatable detection over long periods.
- Used in quality control systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
