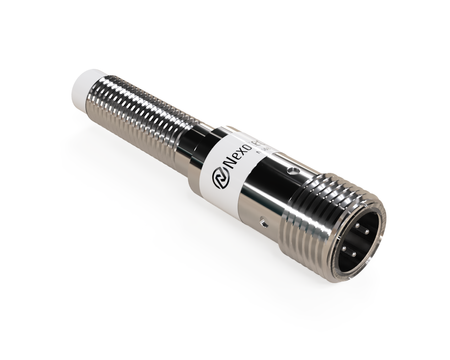

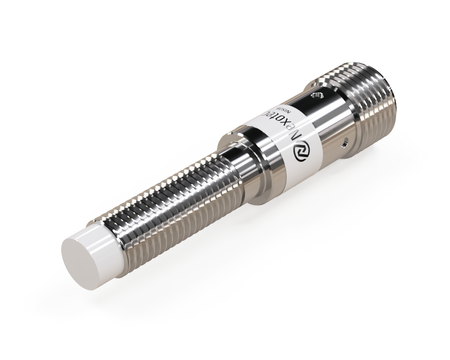

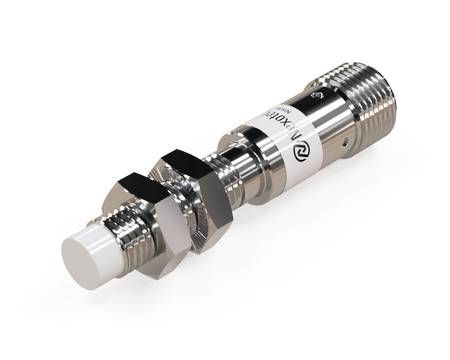

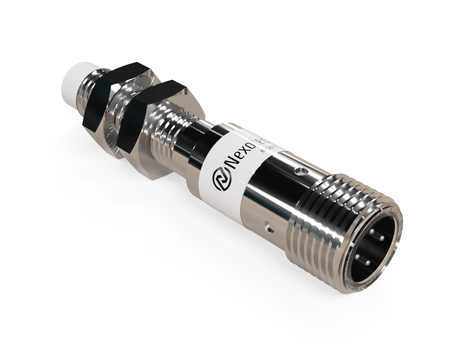

Inductive sensor M8 53 mm connector M12 NPN NO Sn = 2 mm
- ● Compact M8 for standard mounting spaces
- ● Long design for high-space systems
- ● Comfortable detection range for common processes
- ● Plug-in – stable under temperature variations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A Teflon-faced inductive sensor NIS08711 ensures reliable operation in automation and process control systems.

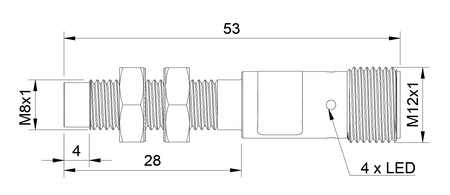

The small M8 housing allows installation in tight spaces of automation systems., Thanks to its size, Ø8 x 53 mm allows flexible positioning of components.
Technical specification:
- Diameter: M8, stable construction for continuous operation
- Length: 53 mm, used in large industrial installations
- Sensing range: 2 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, increased mechanical strength
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, normally open state at rest
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Use in positioning and production synchronization systems.
- Support for automatic clamping systems.
- Detection of product position in packaging processes.
- Detection of elements in robotic work zones.
- Application in OEM machine automation.
Features and Benefits
- Resistance to vibrations and intensive operation
- Compatibility with standard industrial control systems
- High response speed in packaging lines
- Stable operation in high-duty cycle machines
When to choose this model
- Used in standard OEM machines.
- Good for medium and light loads.
- Suitable for mass production.
- Suitable for applications with stable operating conditions.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
