Inductive sensor M8 45 mm connector M8 NPN NO Sn = 6 mm
- ● M8 enables efficient layout planning
- ● Short housing for limited spaces
- ● Sensor with maximum detection zone
- ● Plug-in – performs well in demanding conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

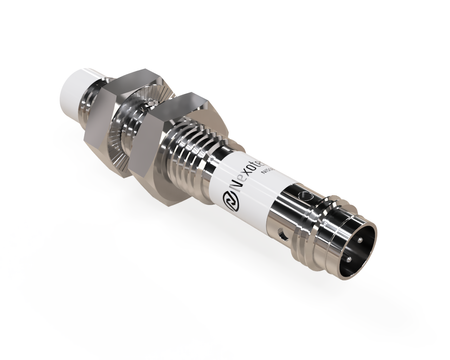

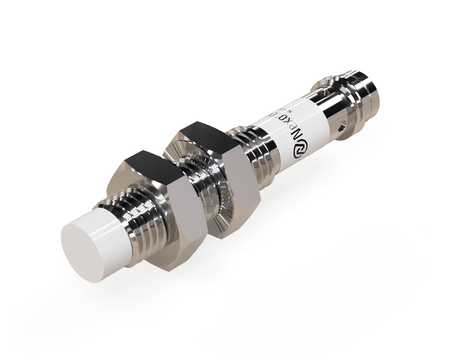

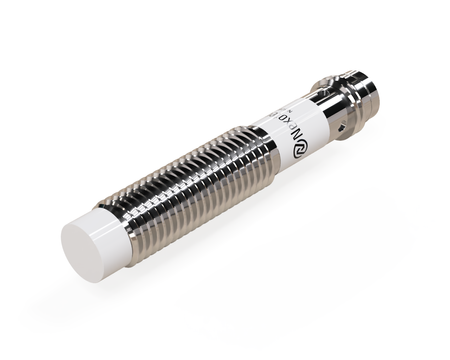

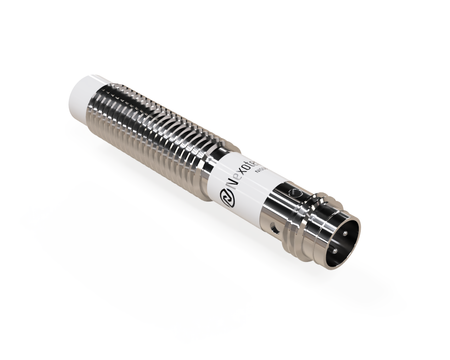

An inductive sensor NIS08451 with a Teflon sensing face is distinguished by its durability and high-quality construction.
The M8 model provides convenient installation in areas with limited space availability., Ø8 x 45 mm sensors, thanks to their diameter, fit standard small mounting holes.

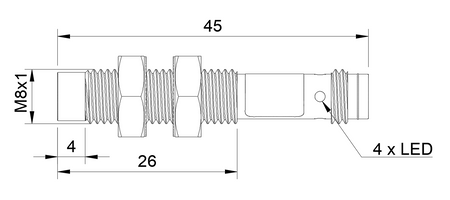

Technical specification:
- Diameter: M8, good compromise between size and detection range
- Length: 45 mm, easy integration with mounting systems
- Sensing range: 6 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, normally open state at rest
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Operation in demanding industrial automotive environments.
- Application in material feeding and unloading systems.
- Support for automatic packaging systems.
- Support for synchronization of robots and machines.
- Application in OEM machine automation.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- Reliable operation in automated packaging systems
- High precision positioning of elements in robotic systems
- Reliable operation in safety and control systems
When to choose this model
- Often used in PLC systems and control automation.
- Suitable for multi-industry applications.
- Used in assembly lines across many industries.
- Used in quality control systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
