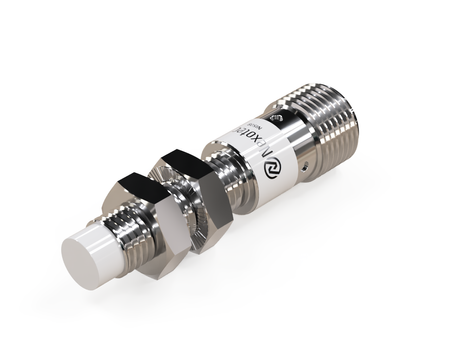

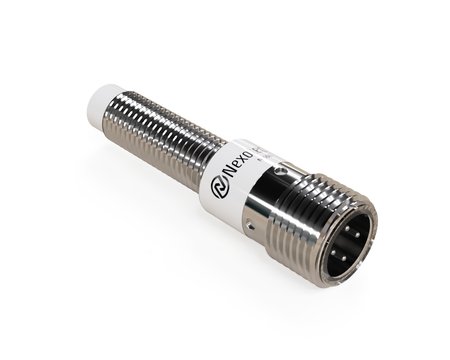

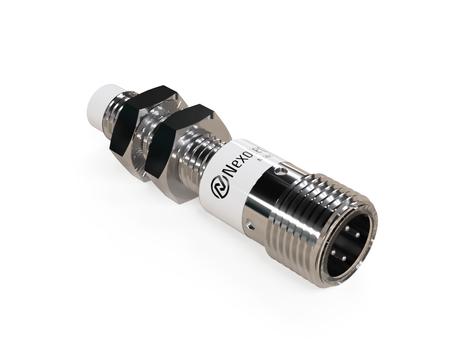

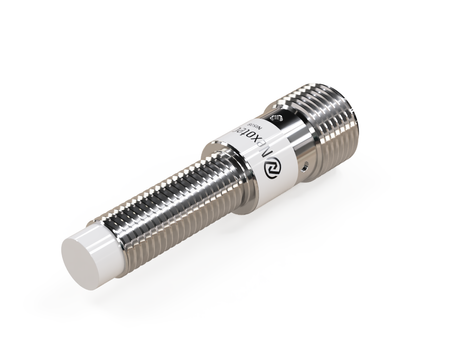

Inductive sensor M8 45 mm connector M12 NPN NC Sn = 2 mm
- ● Medium-diameter M8 for standard assemblies
- ● Ideal for confined mounting areas
- ● Nominal distance ensuring stability
- ● Plug-in – resistant to moisture and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced Teflon-faced inductive sensor NIS08612 supports the efficient operation of industrial machines and equipment.

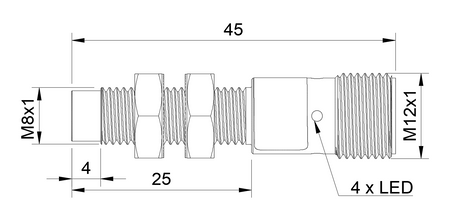

Thanks to reduced dimensions, M8 sensors can be easily integrated into compact control systems., The Ø8 x 45 mm format allows installation where larger sensors do not fit.
Technical specification:
- Diameter: M8, good compromise between size and detection range
- Length: 45 mm, stable mechanical construction
- Sensing range: 2 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in robotized assembly stations.
- Application in CNC machines for position control of elements and tools.
- Control of labeling and dosing machines.
- Support for synchronization of robots and machines.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Easy integration with robotic and PLC systems
- Fast response in dynamic machining processes
- High response speed in packaging lines
- Stable operation in dynamic automation systems
- Long service life in continuous operation
When to choose this model
- Suitable for stable detection of metal parts.
- Good for medium and light loads.
- Used in systems with moderate operating dynamics.
- Ensures good availability and easy replacement.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
