Inductive sensor M8 45 mm cable 3m NPN NO Sn = 3 mm
- ● Compact M8 diameter simplifies integration
- ● Compact solution for tight spaces
- ● Sensor with extended range for long-distance detection
- ● With cable – splash- and water-resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A versatile Teflon-faced inductive sensor NIS08241-K3 combines durability, a compact design, and reliable performance.

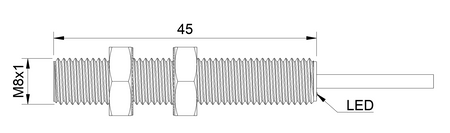

The compact M8 design enables efficient operation in limited mounting space., The Ø8 x 45 mm format allows installation where larger sensors do not fit.
Technical specification:
- Diameter: M8, stable construction for continuous operation
- Length: 45 mm, universal dimensions for most applications
- Sensing range: 3 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Semi-flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: 3 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Use in positioning and production synchronization systems.
- Operation in high-dynamics industrial environments.
- Control of production line synchronization.
- Use in automatic assembly systems.
- Detection of position in internal transport systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to coolants, oils and industrial contaminants
- High response speed in packaging lines
- High precision positioning of elements in robotic systems
- Versatile use in different OEM machine types
When to choose this model
- Used in typical production lines and automation systems.
- Good for medium and light loads.
- Suitable for a wide range of OEM applications.
- Good for applications requiring reliability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
