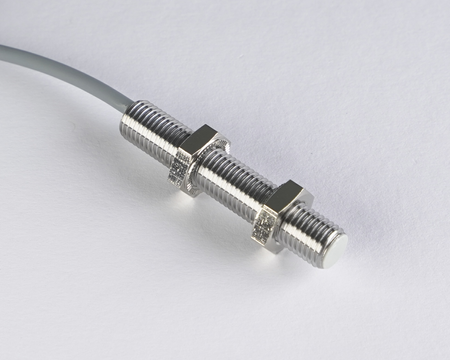

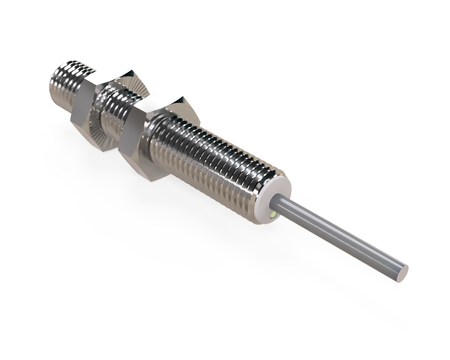

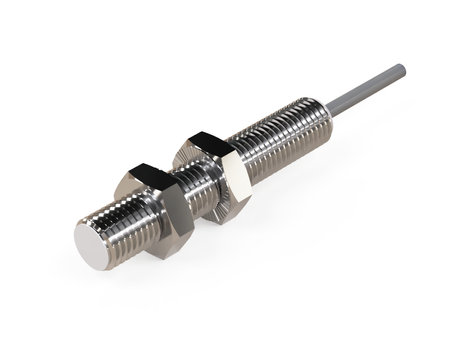

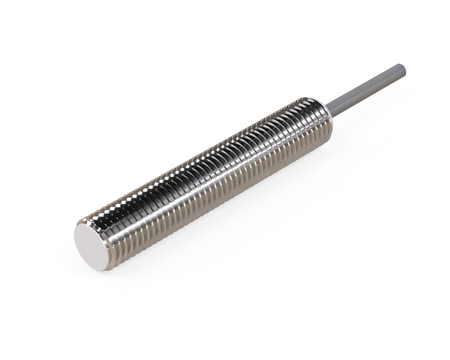

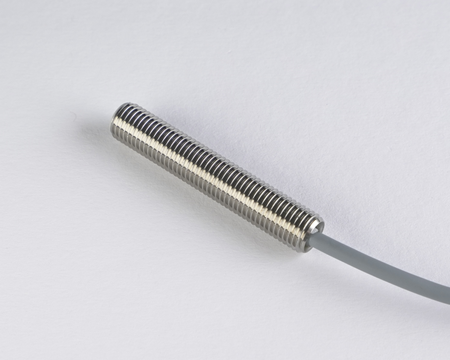

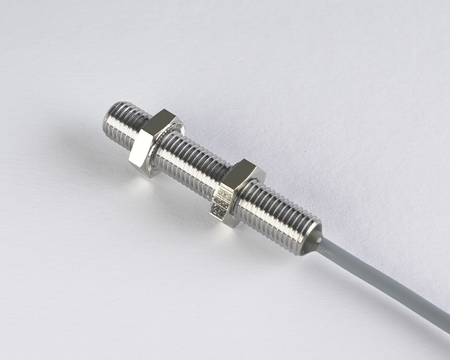

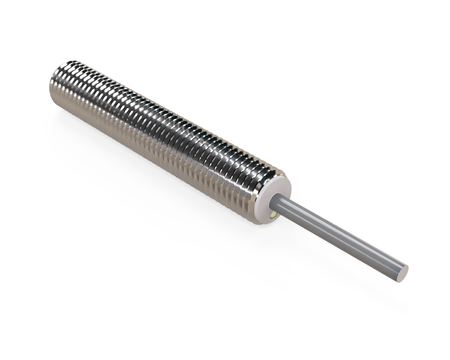

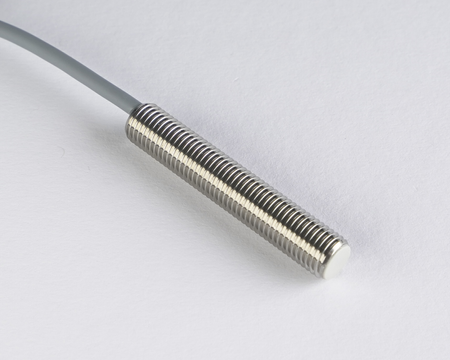

An industrial Teflon-faced inductive sensor NIS08241-K2 has been designed for operation in harsh environmental conditions.
The M8 model provides convenient installation in areas with limited space availability., Ø8 x 45 mm sensors offer small dimensions allowing installation in limited space.
Technical specification:
Diameter: M8, stable construction for continuous operation
Length: 45 mm, stable mechanical construction
Sensing range: 3 mm
Housing: Threaded housing sensor
Housing material: Stainless steel, long sensor lifetime
Sensing face material: PBT, stable dielectric properties for inductive field
Mounting: Semi-flush mounting
Switching function: NO, standard inductive sensor logic
Cable length: 2 m
Supply voltage: DC 10-30V, stable operation in DC automation
Applications
Support for automation of welding processes and steel structure assembly.
Application in CNC machines for position control of elements and tools.
Control of production line synchronization.
Support for synchronization of robots and machines.
Use in actuator and mechanism control systems.
Features and Benefits
Reliable detection of workpiece and tool positions
Easy integration with dosing and labeling machines
High precision positioning of elements in robotic systems
Resistance to electromagnetic interference
When to choose this model
Good compromise between size and functionality.
Ensures stable operation under typical industrial conditions.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
3 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
10–30 V DC
No load current
<10 mA
Max load current
200mA
Leakage current
<0.01 mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220 mA
Voltage drop
<1.5 V
Ripple
<10%
Response time
0.2 ms
Switching frequency
1 kHz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
PBT
LED display
YES

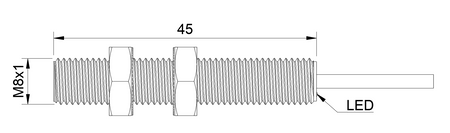

Dimensions
Ø8 x 45 mm
Sensor length
45 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
2 m
Cable diameter
⌀ 3 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25°C
Operating temperature max
+70°C
Inne
Manufacturer code
NIS08241-K2
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
