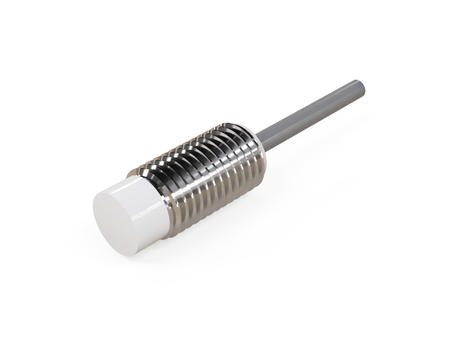

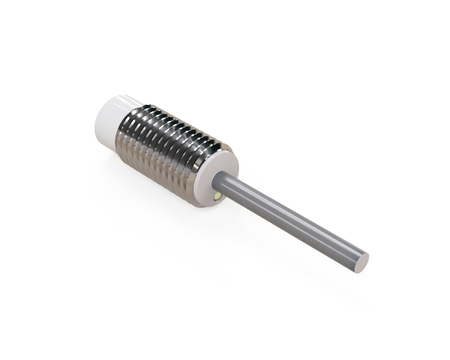

Inductive sensor M8 18 mm cable 3m NPN NO & NC Sn = 2 mm
- ● Compact M8 diameter simplifies integration
- ● Mini enclosure saves space
- ● Reliable detection range for everyday applications
- ● With cable – simple installation in standard machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS08015-K3 with a Teflon sensing face is a robust component for modern automation systems.
Thanks to their optimal size, M8 sensors can be integrated into many automation systems., The small Ø8 x 18 mm length allows installation in shallow working spaces.
Technical specification:
- Diameter: M8, good compromise between size and detection range
- Length: 18 mm, design intended for tight installation spaces
- Sensing range: 2 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, long sensor lifetime
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Monitoring of processes in machining centers.
- Application in packaging transport systems.
- Position control of grippers and robotic actuators.
- Application in machine safety and interlock systems.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- Stable detection in high-throughput processes
- Resistance to frequent cycles and micro-vibrations
- Stable operation in high-duty cycle machines
When to choose this model
- Suitable for stable detection of metal parts.
- Used in standard production processes.
- Suitable for a wide range of OEM applications.
- Performs well in standard installations.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
