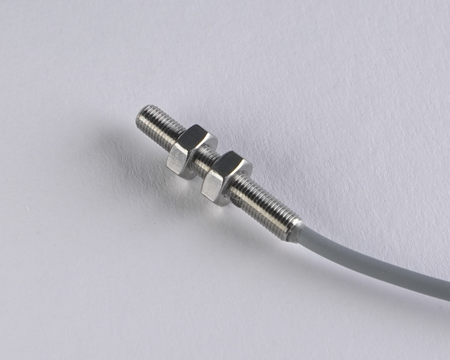

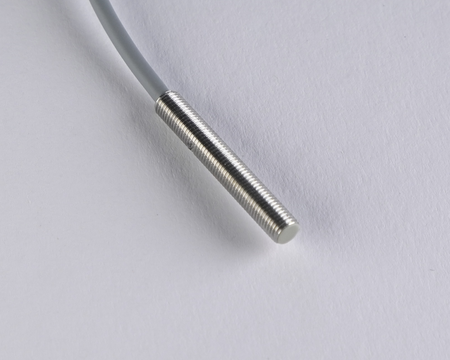

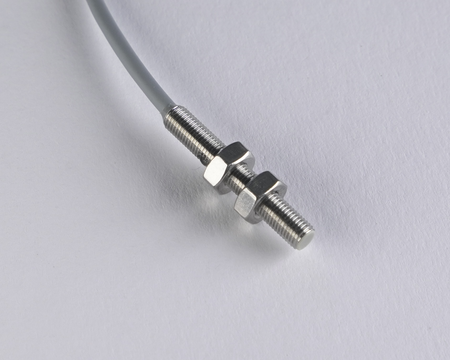

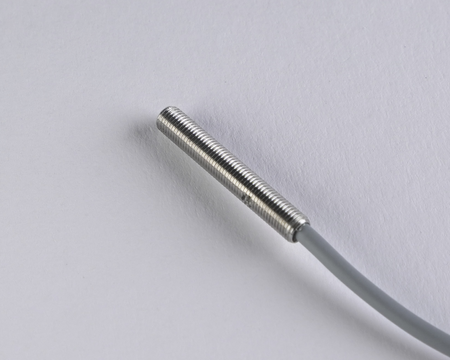

Inductive sensor M4 25 mm cable 3m NPN NC Sn = 1 mm
- ● Compact M4 simplifies system design
- ● Compact solution for tight spaces
- ● Reliable sensing zone for typical installations
- ● With cable – durable for daily operation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A compact inductive sensor NIS04322 with a Teflon face is a reliable solution for control systems and production lines.
The sensor from this Nexotec series was developed for applications requiring small but reliable automation components., The small Ø4 x 25 mm size enables integration into precision mechanisms.
Technical specification:

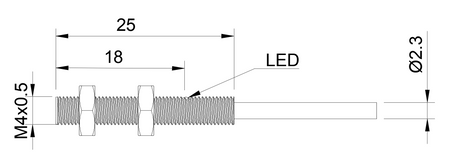

- Diameter: M4, solution used in light and precision automation
- Length: 25 mm, low weight and compact sensor format
- Sensing range: 1 mm
- Housing: Threaded housing sensor
- Housing material: Stainless steel, resistant to aggressive industrial environments
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Semi-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 3 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Application in robotized assembly stations.
- Detection of workpieces before machining operations.
- Application in forming and sealing machines.
- Application in integration of industrial automation systems.
- Detection of position in internal transport systems.
Features and Benefits
- Resistance to coolants, oils and industrial contaminants
- Resistance to intensive cyclic operation
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Suitable for applications with limited mounting space where a compact design is important.
- Used where mounting space is a key limitation.
- Suitable for small-sized devices.
- Used in systems with limited service access.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
