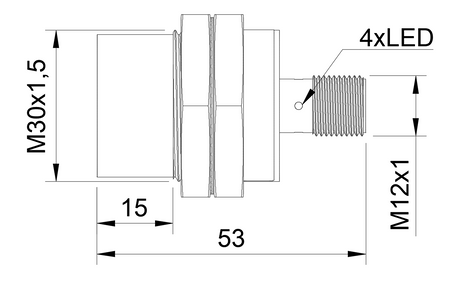

Inductive sensor M30 53 mm connector M12 PNP NO Sn = 50 mm
- ● Larger-diameter M30 increases mounting flexibility
- ● Long version for open mounting areas
- ● Sn distance for greater operating range
- ● Plug-in – splash- and water-resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A Teflon-faced inductive sensor NIS30373 is an excellent choice for automation systems where reliability and repeatable performance are essential.
The M30 inductive model is a solution for systems requiring high operational efficiency., Obudowa Ø30 x 53 mm umożliwia stabilną pracę w środowiskach o dużej dynamice mechanicznej.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 53 mm, designed for demanding operating conditions
- Sensing range: 50 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO, used in typical control applications
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Application in tool change and positioning systems.
- Control of labeling and dosing machines.
- Detection of elements in robotic work zones.
- Use in actuator and mechanism control systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Fast response in dynamic machining processes
- Easy integration with dosing and labeling machines
- Stable operation in dynamic automation systems
- Stable operation in high-duty cycle machines
When to choose this model
- Good for extreme environmental conditions.
- Suitable for mining and heavy industry.
- Used in large automation lines.
- Used in systems requiring long detection range.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
