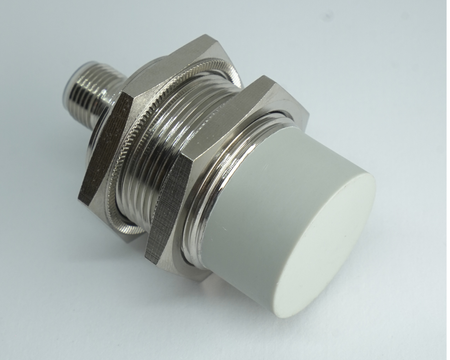

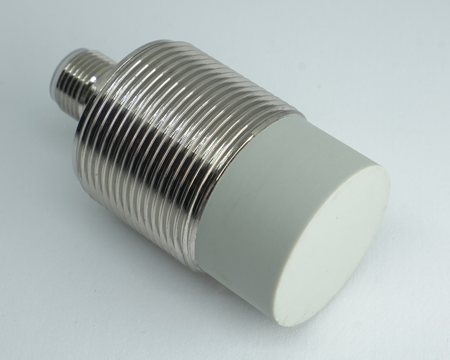

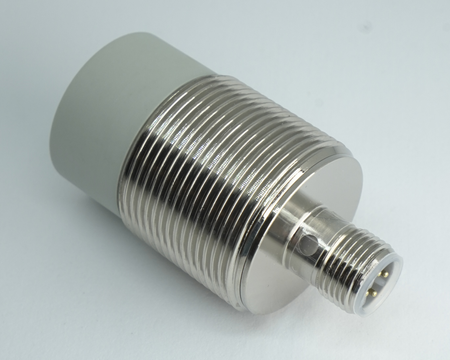

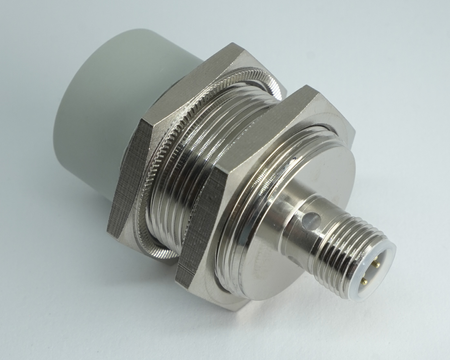

Inductive sensor M30 53 mm connector M12 NPN NO Sn = 40 mm
- ● Compact M30 diameter facilitates component placement
- ● Long version for open mounting areas
- ● Sensor with enhanced operating range
- ● Plug-in – precise in challenging applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30351 for industrial automation with a Teflon coating provides stable and long-lasting performance.
The M30 industrial sensor is distinguished by a solid construction and wide application range., Obudowa Ø30 x 53 mm umożliwia stabilną pracę w środowiskach o dużej dynamice mechanicznej.
Technical specification:
- Diameter: M30, high mechanical and environmental resistance

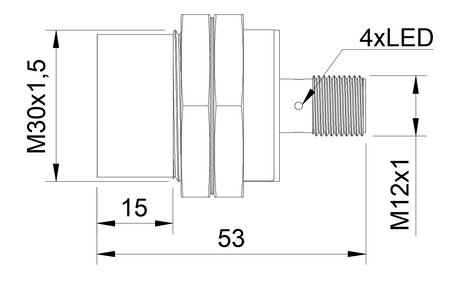

- Length: 53 mm, used in large industrial installations
- Sensing range: 40 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Operation in demanding industrial automotive environments.
- Application in material feeding and unloading systems.
- Support for automatic packaging systems.
- Application in robotic systems for detecting element positions.
- Use in actuator and mechanism control systems.
Features and Benefits
- Easy integration with dosing and labeling machines
- Reliable synchronization of machines and robots
- Resistance to electromagnetic interference
When to choose this model
- Used in applications requiring maximum detection range.
- Performs well in high-vibration environments.
- Used in large automation lines.
- Used in continuous production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
