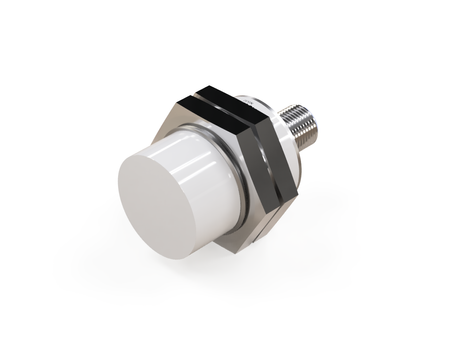

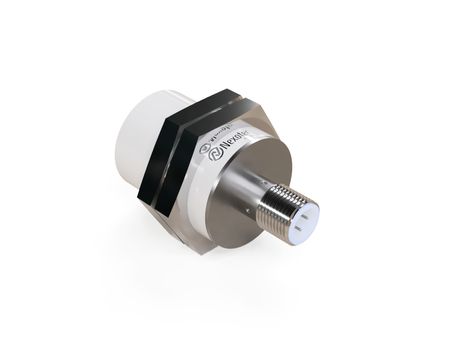

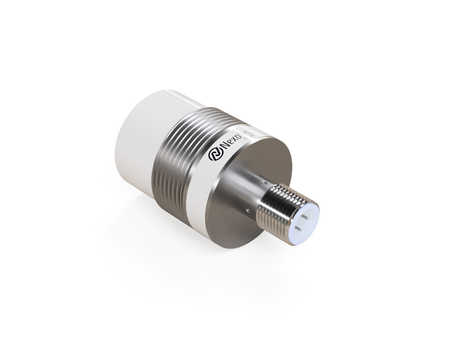

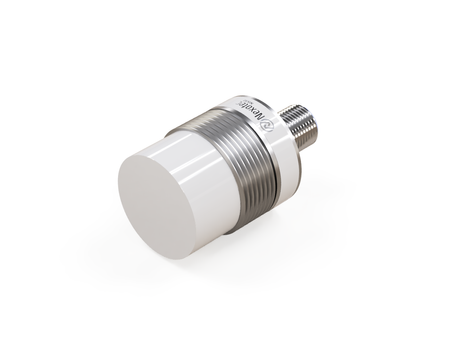

Inductive sensor M30 53 mm connector M12 NPN NC Sn = 50 mm
- ● M30 enables efficient component layout
- ● Extended module for large machines and production lines
- ● Sensor for remote installations
- ● Plug-in – performs well in demanding conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A Teflon-faced inductive sensor NIS30372 is an excellent choice for automation systems where reliability and repeatable performance are essential.
The M30 product was designed for industrial automation with high requirements., Czujnik Ø30 x 53 mm dzięki swojej konstrukcji lepiej sprawdza się w ciężkich maszynach i liniach produkcyjnych.
Technical specification:

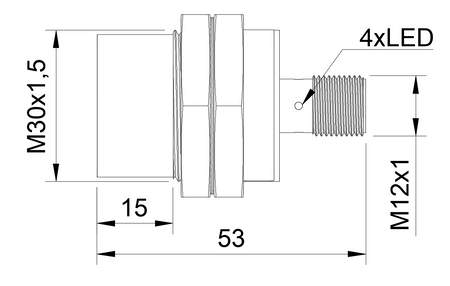

- Diameter: M30, maximum detection range in this design class
- Length: 53 mm, designed for demanding operating conditions
- Sensing range: 50 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Application in robotized assembly stations.
- Application in material feeding and unloading systems.
- Application in forming and sealing machines.
- Position control of grippers and robotic actuators.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- High response speed in packaging lines
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Used in applications requiring maximum detection range.
- Used in high-performance systems.
- Used in large-scale industrial installations.
- Ensures long-term operational stability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
