Inductive sensor M30 48 mm connector M12 NPN NC Sn = 22 mm
- ● M30 for large automation systems
- ● Compact housing for small systems
- ● Sensor with extended detection field
- ● Plug-in – ideal for industrial applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30342 with a Teflon sensing face is a proven solution for applications requiring high abrasion resistance.
The M30 model represents a line of sensors for heavy-duty applications., Większa obudowa Ø30 x 48 mm zapewnia lepsze przenoszenie obciążeń montażowych.
Technical specification:

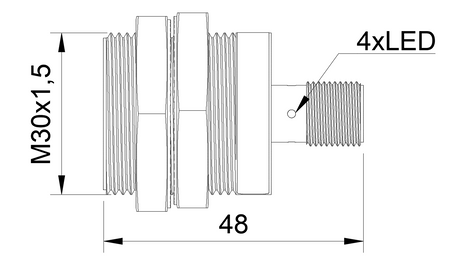

- Diameter: M30, maximum detection range in this design class
- Length: 48 mm, universal dimensions for most applications
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Use in assembly processes and verification of correct part positioning.
- Application in material feeding and unloading systems.
- Detection of product position in packaging processes.
- Operation in modern production robotization systems.
- Position detection in special-purpose machines.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to intensive cyclic operation
- Reliable synchronization of machines and robots
- High resistance to harsh industrial conditions
When to choose this model
- Good for extreme environmental conditions.
- Suitable for mining and heavy industry.
- Used in large automation lines.
- Ensures long-term operational stability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
