Inductive sensor M18 Metal face 79 mm connector M12 NPN NC Sn = 10 mm
- ● Cylindrical M18 with high durability and resistance
- ● For applications with extended mounting zones
- ● Sensor with maximum sensing range
- ● Reliable under heavy load
- ● Plug-in version – quick machine installation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A stainless steel face inductive sensor NMF18152 is ideal for industrial applications requiring maximum resistance to mechanical damage, impact, abrasion, and harsh operating conditions.
The M18 all-metal inductive sensor is a robust solution for industrial automation applications requiring exceptional durability, mechanical strength, and reliable long-term performance., Due to its size, the Ø18 x 79 mm sensor performs effectively in more demanding mounting applications.

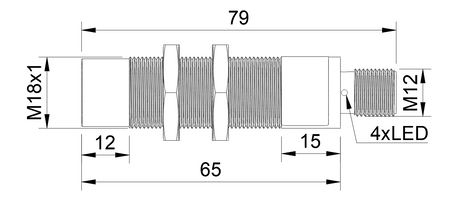

Technical specification:
- Diameter: M18, designed for applications with higher operational loads
- Length: 79 mm, improved resistance to vibration, shock, and mechanical stress
- Sensing range: 10 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They are widely used in robotic assembly cells and automated manufacturing workstations.
- Supports automatic workpiece clamping and fixture systems.
- Supports the automation of packaging and sorting processes.
- Integrated into automated assembly and manufacturing systems.
- Supports actuator control systems and industrial mechanical assemblies.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- High mechanical resistance in demanding operating conditions.
- High response speed in packaging lines.
- High positioning accuracy of components in robotic systems.
- Resistance to electromagnetic interference.
When to choose this model
- Suitable for operation in environments with high levels of vibration, impact, and mechanical stress.
- Selected for reliable detection of larger metal objects over extended sensing distances.
- Used in heavy manufacturing applications requiring robust and maintenance-free sensor performance.
- Designed for large automation systems requiring durable and reliable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
