Inductive sensor M18 Metal face 55 mm cable 3m PNP NC Sn = 5 mm
- ● Heavy-duty metal M18 for demanding applications
- ● For applications with more available space
- ● Stable sensing range for typical applications
- ● Reliable in demanding conditions
- ● Cable version – stable under temperature changes
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

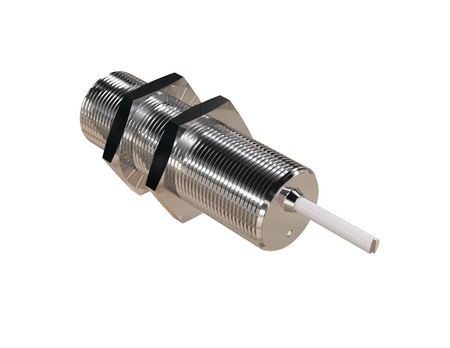

An all-metal inductive sensor NMF18304 with a stainless steel sensing face is a robust component for modern industrial automation, smart manufacturing systems, and heavy-duty applications.
The M18 sensor ensures continuous, dependable operation in industrial control systems and process monitoring applications exposed to harsh environmental conditions., Due to its size, the Ø18 x 55 mm sensor performs effectively in more demanding mounting applications.
Technical specification:
- Diameter: M18, enhanced resistance to shocks, vibrations, and mechanical stress
- Length: 55 mm, designed for reliable operation in demanding industrial environments
- Sensing range: 5 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, stable operating characteristics when installed in metal surfaces
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: 3 m
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- They are used in assembly processes to verify the correct positioning and seating of parts.
- Detects the presence of workpieces in machining fixtures and clamping systems.
- Used in packaging conveyor and material handling systems.
- Detects the presence of components within robotic work zones.
- Monitors the position of components in special-purpose machines.
Features & Benefits
- Stable operation in high-speed and dynamic production environments.
- Compatibility with standard industrial control systems.
- Precise synchronization of production processes.
- High positioning accuracy of components in robotic systems.
- Long service life in continuous operation.
When to choose this model
- Suitable for operation in environments with high levels of vibration, impact, and mechanical stress.
- Performs reliably in heavy-duty applications requiring long service life and wear resistance.
- Suitable for industrial OEM installations where rugged all-metal construction provides additional protection.
- Designed for long-term continuous operation with reduced risk of mechanical damage.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
