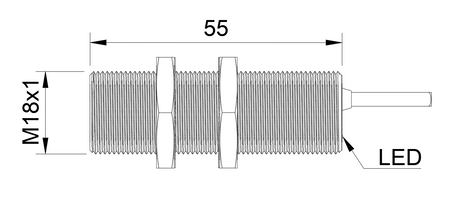

Inductive sensor M18 Metal face 55 mm cable 3m NPN NC Sn = 5 mm
- ● Inductive M18 with a fully metal, durable construction
- ● Long version for expanded systems
- ● Classic sensing range in practical use
- ● Full metal – extended lifespan
- ● Cable version – for demanding environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A professional inductive sensor NMF18302 with a stainless steel sensing face is perfectly suited for industrial applications requiring maximum durability, protection, and operational reliability.
The M18 inductive sensor is an ideal solution for applications requiring durability, stability, accurate object detection, and resistance to intensive industrial operation., The Ø18 x 55 mm format enables reliable operation in environments with elevated vibration levels and mechanical loads.
Technical specification:
- Diameter: M18, large diameter design providing extended detection range
- Length: 55 mm, improved resistance to vibration, shock, and mechanical stress
- Sensing range: 5 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, reduced lateral detection field for precise sensing performance
- Switching function: NC, normally closed (NC) output state in idle condition
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
- Ensures accurate positioning of machine axes and moving machine components.
- Ensures synchronization of components in production and packaging lines.
- Detects the presence of components within robotic work zones.
- Integrated into machine safety systems and interlock applications.
Features & Benefits
- Easy integration with robotic systems and PLC control systems.
- Resistance to coolants, oils, and industrial contaminants.
- Compact design enabling installation in space-limited applications.
- Fast detection in pick-and-place processes.
- Reliable performance in safety and control systems.
When to choose this model
- Suitable for operation in environments with high levels of vibration, impact, and mechanical stress.
- Suitable for large production machines and heavy industrial equipment.
- Provides increased mounting flexibility and higher resistance to installation-related mechanical stress.
- Performs reliably under demanding operating conditions with high mechanical loads.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
