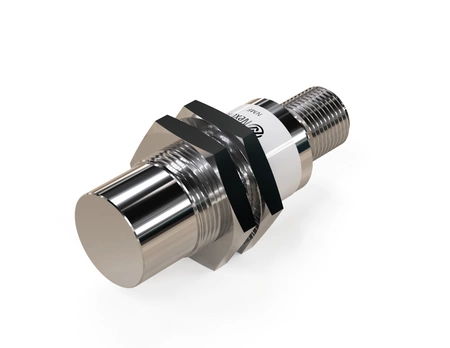

Inductive sensor M18 Metal face 48 mm connector M12 NPN NC Sn = 8 mm
- ● M18 with high mechanical strength and resistance
- ● For mounting in hard-to-reach areas
- ● Sensor for longer distance detection
- ● Maximum resistance to damage
- ● Plug-in version – resistant to washing and moisture
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A heavy-duty inductive sensor NMF18132 with a stainless steel sensing face is designed for demanding industrial systems exposed to welding sparks, metal chips, vibration, and heavy mechanical loads.
The M18 sensor supports the efficient operation of machinery in modern automated production lines while providing excellent protection against mechanical damage and wear., The Ø18 x 48 mm sensor ensures secure and reliable mounting in larger diameter installation openings.
Technical specification:
- Diameter: M18, designed for applications with higher operational loads
- Length: 48 mm, universal dimensions suitable for a wide range of industrial applications
- Sensing range: 8 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: n/d
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- They support the automation of welding processes and steel structure assembly applications.
- Detects workpiece presence before machining operations begin.
- Supports automatic packaging machines and automated packing systems.
- Delivers reliable performance in advanced robotic and automated production environments.
- Used in industrial machinery for precise position monitoring of moving components.
Features & Benefits
- Precise detection of metal components in assembly processes.
- High mechanical resistance in demanding operating conditions.
- Compact design enabling installation in space-limited applications.
- High positioning accuracy of components in robotic systems.
- Long service life in continuous operation.
When to choose this model
- Suitable for operation in environments with high levels of vibration, impact, and mechanical stress.
- Suitable for intensive industrial use where resistance to abrasion, vibration, and damage is essential.
- Ideal for high-throughput production systems requiring stable and repeatable detection.
- Provides stable and repeatable detection performance in applications requiring maximum reliability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
