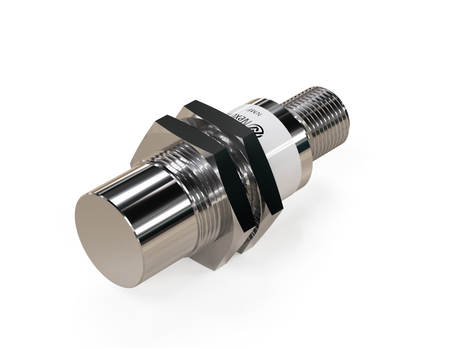

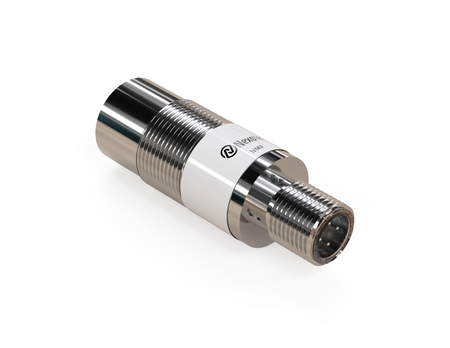

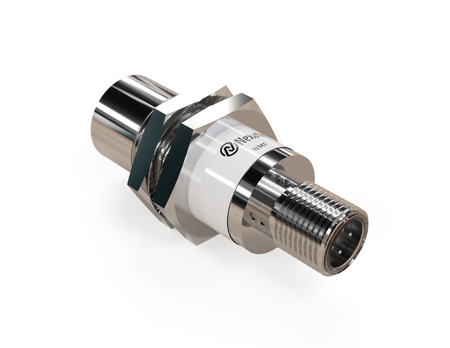

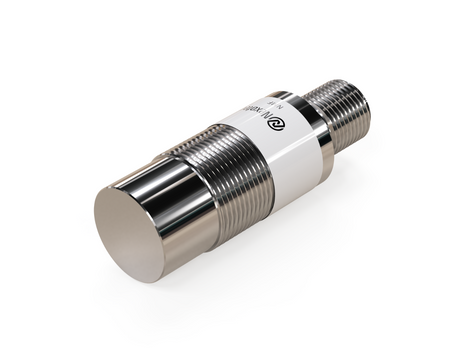

Inductive sensor M18 Metal face 48 mm connector M12 NPN NC Sn = 10 mm
- ● All-metal M18 ideal for machinery and production lines
- ● Compact construction used in machinery
- ● Sn range for longer detection distance
- ● Strong and durable construction
- ● Plug-in version – quick machine installation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A stainless steel all-metal inductive sensor NMF18172 is engineered for extended service life in harsh industrial environments exposed to impacts, contamination, and extreme operating conditions.
This M18 model represents a line of inductive sensors developed for demanding manufacturing and automation applications where rugged construction and reliability are essential., Thanks to the Ø18 x 48 mm size, these sensors can be used in applications requiring greater detection distances.
Technical specification:
- Diameter: M18, designed for applications with higher operational loads
- Length: 48 mm, tandard housing length used in industrial inductive sensors
- Sensing range: 10 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, full exposure of the sensing area for maximum detection performance
- Switching function: NC, normally closed (NC) output state in idle condition
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
- They provide accurate object detection in automated vehicle manufacturing systems.
- Monitors machining processes in CNC machining centers.
- Integrated into packaging forming and sealing machines.
- Used in robotic axis positioning and motion control systems.
- Supports both high-volume production and custom manufacturing applications.
Features & Benefits
- High signal repeatability in serial production processes.
- Fast response in dynamic machining processes.
- Reliable operation in automated packaging systems.
- Resistance to frequent operating cycles and micro-vibrations.
- Long service life in continuous operation.
When to choose this model
- Used in applications requiring extended detection range and reliable sensing of larger metal components.
- Ensures stable long-range metal detection even in demanding production environments.
- Suitable for industrial OEM installations where rugged all-metal construction provides additional protection.
- Used in heavy industry installations where robust construction and durability are essential.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
