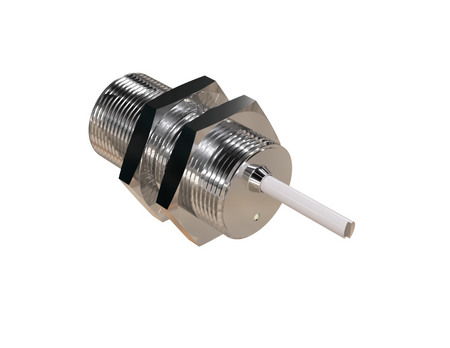

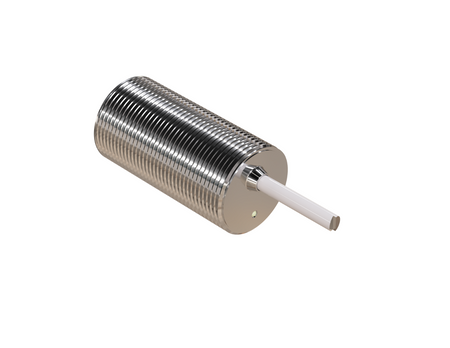

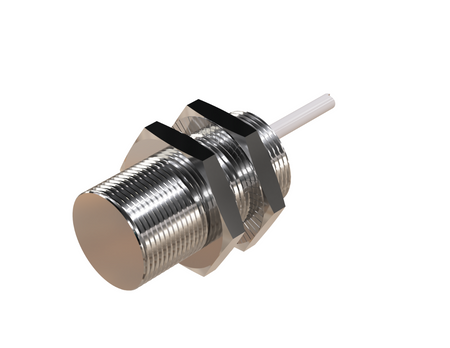

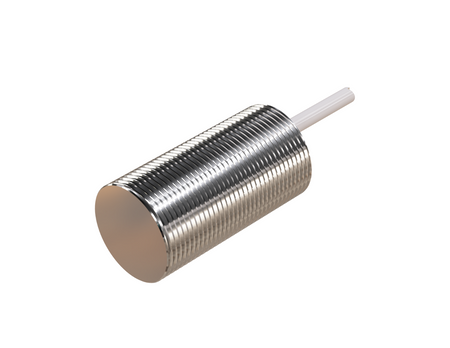

Inductive sensor M18 Metal face 35 mm cable 3m PNP NC Sn = 5 mm
- ● M18 suitable for demanding industrial environments
- ● Compact construction used in machinery
- ● Effective sensing zone in typical conditions
- ● No plastic parts in sensing area
- ● Cable version – performs in harsh conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NMF18324 with a stainless steel sensing face is a proven solution for applications requiring high resistance to abrasion, impact, welding spatter, and mechanical stress.
The M18 model is part of a sensor range developed for industrial automation, process control, and machine monitoring systems requiring reliable detection and enhanced resistance., The larger Ø18 x 35 mm housing supports installation in systems requiring durable and reliable sensor mounting.
Technical specification:
- Diameter: M18, large diameter design providing extended detection range
- Length: 35 mm, tandard housing length used in industrial inductive sensors
- Sensing range: 5 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
- Switching function: NC, used in safety-related applications and monitoring functions
- Cable length: 3 m
- Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
- Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
- Monitors machining processes in CNC machining centers.
- Used in packaging lines for reliable product presence detection.
- Used in robotic axis positioning and motion control systems.
- Used in OEM machine automation and control systems.
Features & Benefits
- Designed for continuous production and automated manufacturing systems.
- High detection accuracy in machining environments.
- High response speed in packaging lines.
- Reliable synchronization of machine and robot operation.
- High resistance to harsh industrial conditions.
When to choose this model
- Suitable for operation in environments with high levels of vibration, impact, and mechanical stress.
- Ideal for applications where extended lifetime and resistance to mechanical wear are critical.
- Suitable for operation in dusty environments, vibration-prone areas, and harsh production conditions.
- Provides a high level of reliability through all-metal housing, impact resistance, and superior wear protection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
