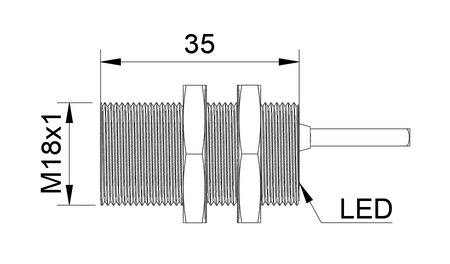

Inductive sensor M18 Metal face 35 mm cable 3m NPN NC Sn = 5 mm
- ● Robust cylindrical M18 with strong and solid design
- ● Short construction for high-density systems
- ● Stable sensing range for typical applications
- ● High resistance to abrasion
- ● Cable version – resistant to washing and moisture
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced stainless steel inductive sensor NMF18322 improves the efficiency and reliability of industrial machinery operating in challenging environments with high mechanical stress.
The M18 all-metal inductive sensor is a robust solution for industrial automation applications requiring exceptional durability, mechanical strength, and reliable long-term performance., Due to its size, the Ø18 x 35 mm sensor performs effectively in more demanding mounting applications.
Technical specification:
- Diameter: M18, enhanced resistance to shocks, vibrations, and mechanical stress
- Length: 35 mm, stable mechanical construction for reliable operation
- Sensing range: 5 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
- Switching function: NC, normally closed (NC) output state in idle condition
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They are widely used in robotic assembly cells and automated manufacturing workstations.
- Ensures accurate positioning of machine axes and moving machine components.
- Detects product position during packaging processes.
- Delivers reliable performance in advanced robotic and automated production environments.
- Monitors processes in complex mechanical and automated systems.
Features & Benefits
- Designed for continuous production and automated manufacturing systems.
- Fast response in dynamic machining processes.
- Stable detection in high-throughput production processes.
- High positioning accuracy of components in robotic systems.
- Easy adaptation to different machine designs.
When to choose this model
- Used in industrial transport systems and heavy automation applications requiring robust sensing technology.
- Designed to withstand harsh industrial conditions, mechanical impacts, and intensive operation.
- Used in heavy manufacturing applications requiring robust and maintenance-free sensor performance.
- Provides a high level of reliability through all-metal housing, impact resistance, and superior wear protection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
