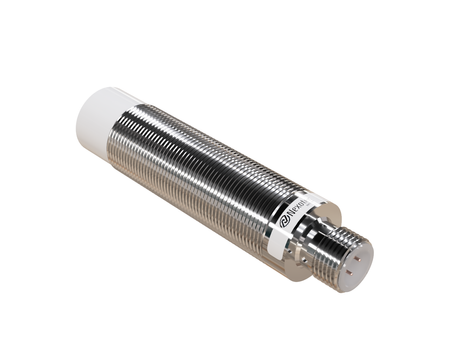

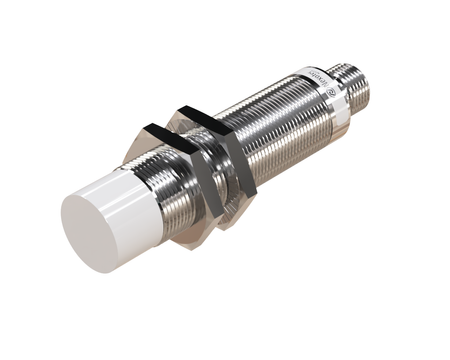

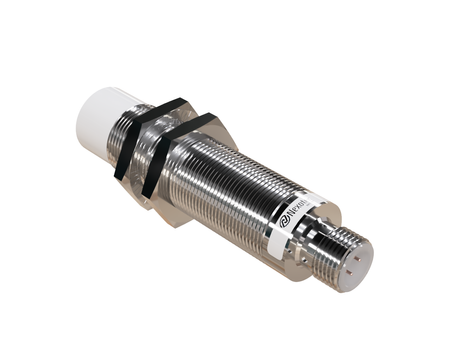

Inductive sensor M18 79 mm connector M12 PNP NC Sn = 16 mm
- ● Compact M18 simplifies component arrangement
- ● Longer design for larger automation systems
- ● Sensor with maximum detection zone
- ● Plug-in – quick installation and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS18434 with a Teflon sensing face is distinguished by its durability and high-quality construction.
The M18 model is part of a line of sensors used in automation and process control., Obudowa Ø18 x 79 mm zapewnia bardziej pewne mocowanie w instalacjach narażonych na wibracje.
Technical specification:
- Diameter: M18, reinforced construction for operation in harsh conditions
- Length: 79 mm, larger mounting surface for thread connection
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Detection of elements in automated vehicle production systems.
- Detection of workpieces in machining fixtures.
- Application in forming and sealing machines.
- Operation in modern production robotization systems.
- Use in actuator and mechanism control systems.
Features and Benefits
- High detection precision in machining environments
- Stable detection in high-throughput processes
- High precision positioning of elements in robotic systems
When to choose this model
- Suitable for harsher industrial conditions.
- Suitable for intensive operation.
- Used in heavy production applications.
- Performs well in demanding working conditions.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
