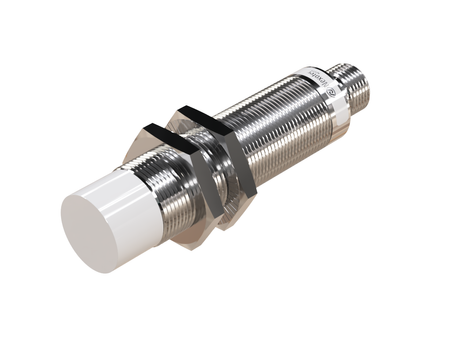

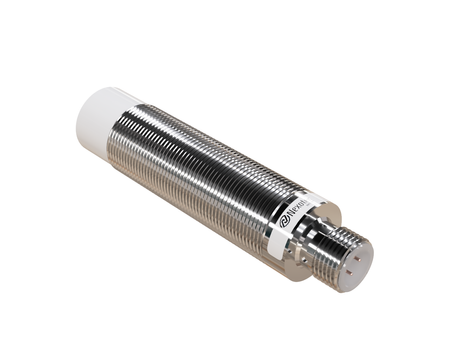

Inductive sensor M18 79 mm connector M12 NPN NO Sn = 20 mm
Symbol:
NIS18451
Inductive sensor M18 79 mm connector M12 NPN NO Sn = 20 mm
- ● M18 allows convenient system layout planning
- ● Modular housing for wide panels
- ● Sensor for remote installations
- ● Plug-in – solid and reliable construction
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS18451
A modern inductive sensor NIS18451 with a Teflon coating provides a long service life in demanding industrial environments.
This M18 inductive sensor was designed for efficient operation in automation installations., Większa średnica Ø18 x 79 mm umożliwia łatwiejszą integrację w masywniejszych elementach maszyn.
Technical specification:
- Diameter: M18, reinforced construction for operation in harsh conditions
- Length: 79 mm, larger mounting surface for thread connection
- Sensing range: 20 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Support for automation of welding processes and steel structure assembly.
- Detection of workpieces in machining fixtures.
- Support for automatic packaging systems.
- Operation in modern production robotization systems.
- Application in OEM machine automation.
Features and Benefits
- Signal repeatability in mass production processes
- High detection precision in machining environments
- Reliable operation in automated packaging systems
- Stable operation in dynamic automation systems
- Resistance to electromagnetic interference
When to choose this model
- Suitable for harsher industrial conditions.
- Suitable for intensive operation.
- Suitable for dusty and vibration-heavy conditions.
- Performs well in demanding working conditions.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS18451
Producer code
5907367823608
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M18
Switching distance
20 mm
Mounting
Non-flush mounting
Output function
NPN
Switching function
NO
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
1ms
Switching frequency
100Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES
Dimensions
Ø18 x 79 mm
Sensor length
79 mm
Electrical connection
Connection type
Connector
Connector size
M12
Number of pins
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS18451
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
