Inductive sensor M18 40 mm cable 2m NPN NO & NC Sn = 20 mm
- ● Large M18 simplifies component placement
- ● Miniature version for precision machinery
- ● Sensor for detection over larger areas
- ● With cable – quick connection in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

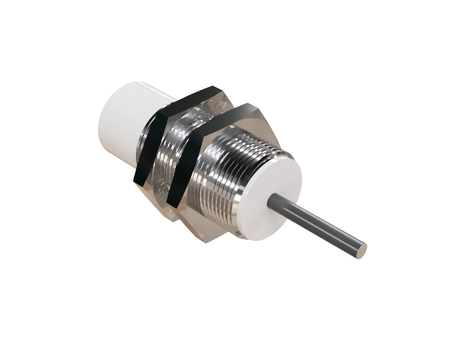

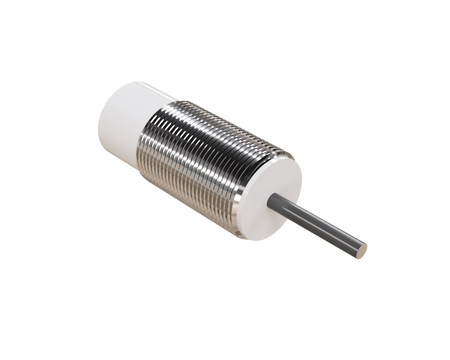

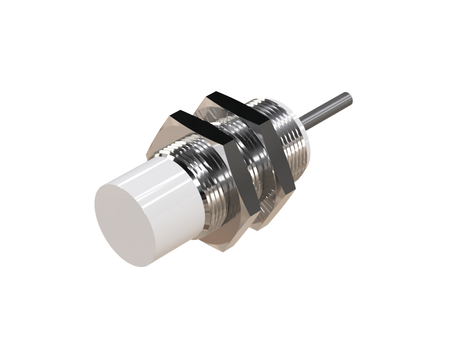

NIS18055-K2
A professional inductive sensor NIS18055-K2 with a Teflon sensing face performs exceptionally well in applications requiring high reliability.
The M18 sensor ensures stable operation in control systems and industrial applications., Czujnik Ø18 x 40 mm dzięki swojej wielkości lepiej radzi sobie w bardziej wymagających aplikacjach montażowych.
Technical specification:

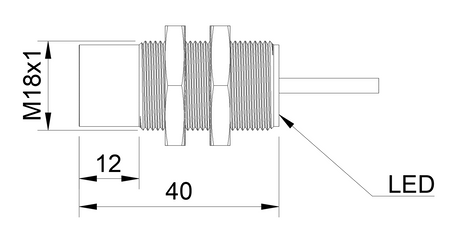

- Diameter: M18, designed for higher-load applications
- Length: 40 mm, easy integration with mounting systems
- Sensing range: 20 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: 2 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Monitoring of processes in machining centers.
- Use in automation of packaging and sorting processes.
- Position control of grippers and robotic actuators.
- Use in actuator and mechanism control systems.
Features and Benefits
- Compatibility with standard industrial control systems
- High response speed in packaging lines
- Reliable operation in safety and control systems
When to choose this model
- Used in 24/7 systems.
- Performs well in heavy-duty applications.
- Good for high-throughput systems.
- Used in heavy industry installations.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
