Inductive sensor M12 68 mm connector M12 NPN NO & NC Sn = 8 mm
- ● M12 version simplifies component arrangement
- ● Extended housing for large installations
- ● Sensor with extended detection field
- ● Plug-in – simple installation in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

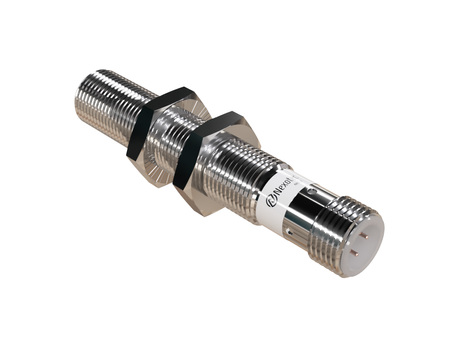

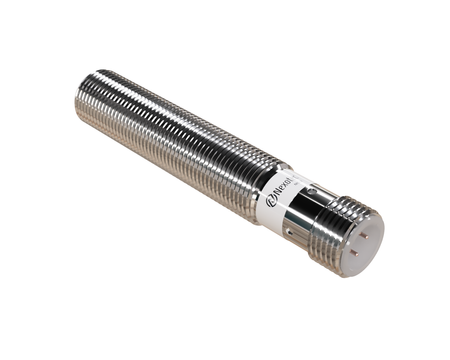

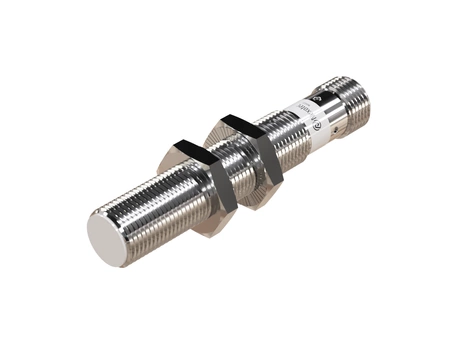

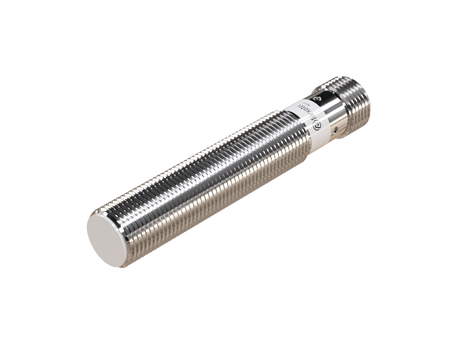

An industrial inductive sensor NIS12465 with a Teflon sensing face combines a compact design with high durability.
The M12 version is a universal solution for applications requiring precise detection in automation., The Ø12 x 68 mm format allows easy adaptation to standard mounting brackets.

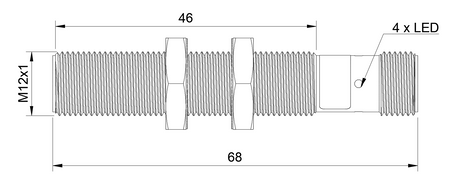

Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 68 mm, better resistance to vibration and stress
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Monitoring of component presence in production transport systems.
- Operation in high-dynamics industrial environments.
- Application in forming and sealing machines.
- Use in automation of pick & place processes.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Resistance to vibrations and intensive operation
- Reliable operation in safety and control systems
When to choose this model
- Used in production systems with higher load.
- Suitable for detecting larger objects.
- Used in transport systems.
- Suitable for high-intensity environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
