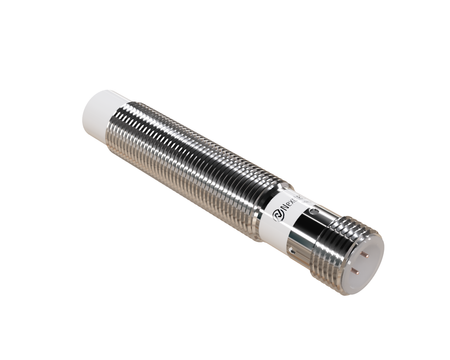

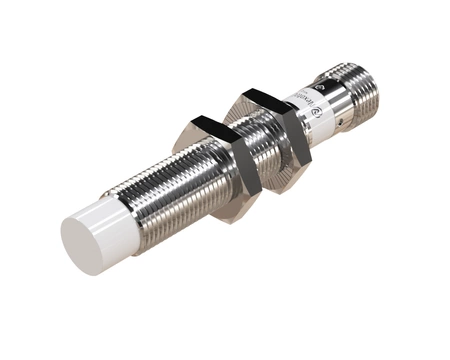

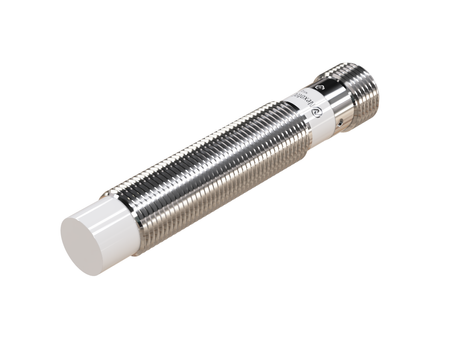

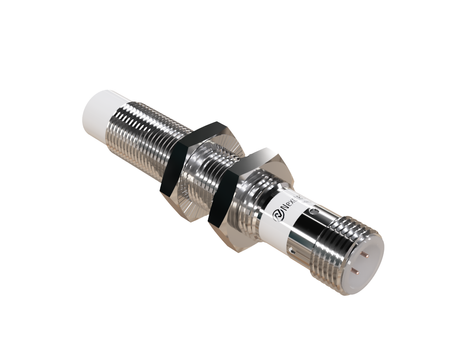

Inductive sensor M12 68 mm connector M12 NPN NO & NC Sn = 12 mm
- ● M12 version simplifies component placement
- ● Modular housing for wide panels
- ● Sensor for detection over larger areas
- ● Plug-in – easy setup and commissioning
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12475 with a Teflon sensing face is a modern industrial automation component that ensures stable operation and high wear resistance.
This M12 inductive sensor supports efficient operation of machines and production equipment., The Ø12 x 68 mm diameter guarantees a good balance between size and stability.
Technical specification:
- Diameter: M12, longer detection range compared to smaller models
- Length: 68 mm, better resistance to vibration and stress
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Monitoring of component presence in production transport systems.
- Use in automation of cutting and milling processes.
- Use in automation of packaging and sorting processes.
- Support for synchronization of robots and machines.
- Position detection in special-purpose machines.
Features and Benefits
- Resistance to intensive cyclic operation
- High precision positioning of elements in robotic systems
- Versatile use in different OEM machine types
When to choose this model
- Chosen for applications requiring increased detection distance.
- Ensures stability in variable conditions.
- Good for upgrading industrial systems.
- Suitable for high-intensity environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
