Inductive sensor M12 50 mm connector M12 PNP NO & NC Sn = 8 mm
- ● M12 allows easy installation in medium-scale setups
- ● Long version for open mounting areas
- ● Sensor for long-range detection
- ● Plug-in – resistant to dust and dirt
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

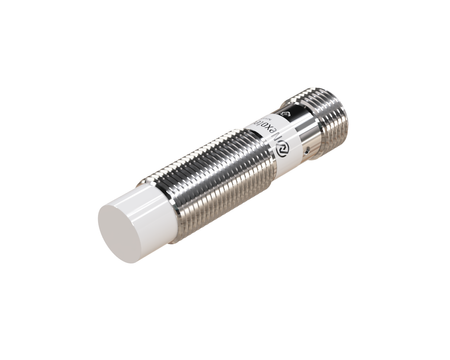

An inductive sensor NIS12336 with a Teflon sensing face offers high resistance to external factors and intensive operation.
The M12 industrial sensor fits into a line of devices dedicated to modern production installations., Ø12 x 50 mm sensors perform well in standard mounting configurations.
Technical specification:

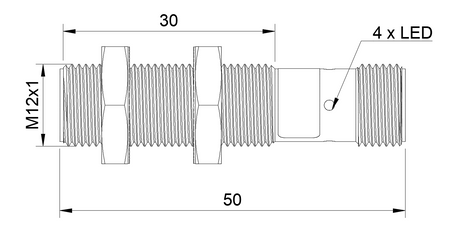

- Diameter: M12, standard size for most machine applications
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Operation in demanding industrial automotive environments.
- Operation in high-dynamics industrial environments.
- Control of labeling and dosing machines.
- Application in robotic systems for detecting element positions.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- High reliability in automated automotive production lines
- Resistance to coolants, oils and industrial contaminants
- Precise synchronization of production processes
- Resistance to frequent cycles and micro-vibrations
- Stable operation in high-duty cycle machines
When to choose this model
- Ensures higher mechanical resistance.
- Chosen for applications requiring increased detection distance.
- Ensures reliable detection in harsher conditions.
- Good for multi-point systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
