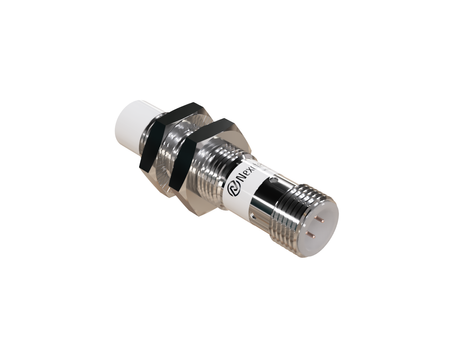

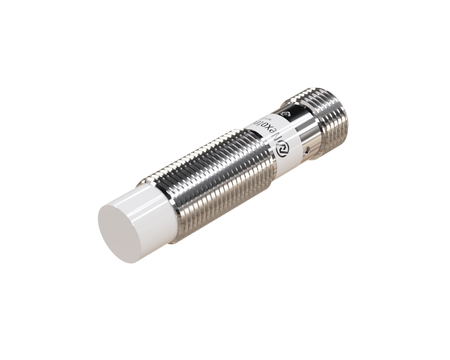

Inductive sensor M12 50 mm connector M12 NPN NO Sn = 8 mm
- ● Compact M12 for medium-scale applications
- ● Long version for open mounting areas
- ● Sensor for long-range applications
- ● Plug-in – ideal for industrial applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A Teflon-faced inductive sensor NIS12331 ensures reliable operation in automation and process control systems.
The M12 model is part of a range of inductive sensors used in automation and process monitoring applications., Thanks to its diameter, Ø12 x 50 mm allows easy adaptation to constructions.

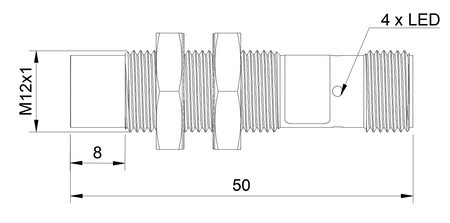

Technical specification:
- Diameter: M12, standard size for most machine applications
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Support for automation of welding processes and steel structure assembly.
- Application in material feeding and unloading systems.
- Control of production line synchronization.
- Use in automatic assembly systems.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Compatibility with standard industrial control systems
- Easy integration with dosing and labeling machines
- Fast detection in pick & place processes
- Stable operation in high-duty cycle machines
When to choose this model
- Used in production and logistics automation.
- Ensures stability in variable conditions.
- Often used in heavier industrial automation.
- Suitable for high-intensity environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
