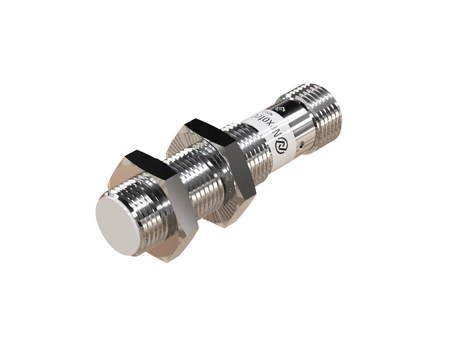

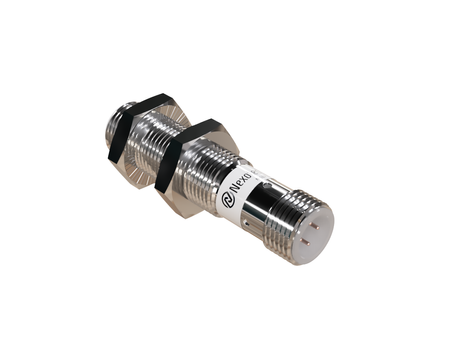

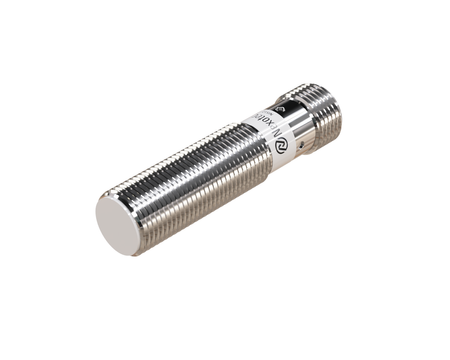

Inductive sensor M12 50 mm connector M12 NPN NO & NC Sn = 8 mm
- ● M12 enables efficient system design
- ● Housing for larger industrial installations
- ● Sn distance for operation at farther distances
- ● Plug-in – easy setup and commissioning
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12365 with a Teflon-finished sensing face guarantees stable operation even under intensive use.
The M12 sensor belongs to a group of solutions designed for modern industrial systems., Ø12 x 50 mm sensors offer installation convenience thanks to optimal proportions.
Technical specification:

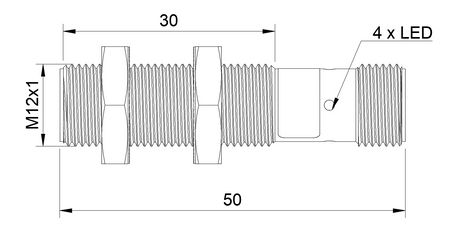

- Diameter: M12, longer detection range compared to smaller models
- Length: 50 mm, good balance between size and durability
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Detection of workpieces in machining fixtures.
- Use in automation of packaging and sorting processes.
- Detection of elements in robotic work zones.
- Application in machine safety and interlock systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Stable operation in CNC machines and automation systems
- Precise synchronization of production processes
- Stable operation in dynamic automation systems
When to choose this model
- Used where a longer detection range is required compared to standard models.
- Good for larger industrial machines.
- Suitable for medium and large-scale systems.
- Ensures good balance of parameters.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
