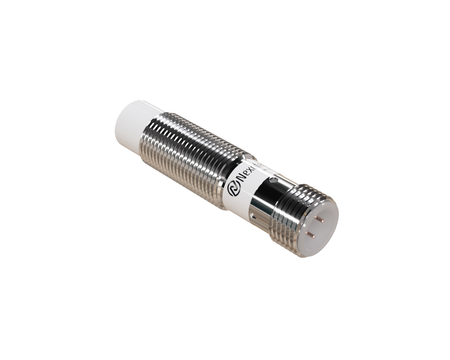

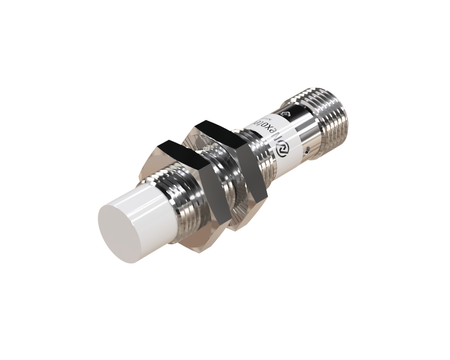

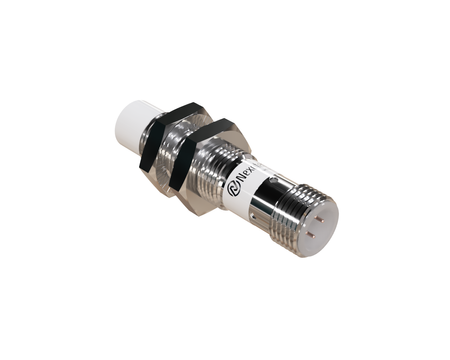

Inductive sensor M12 50 mm connector M12 NPN NO & NC Sn = 8 mm
- ● M12 allows easy installation in medium-scale setups
- ● Long enclosure for expanded applications
- ● Sensor with maximum detection zone
- ● Plug-in – performs well in demanding conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12335 for industrial automation with a Teflon coating provides stable and long-lasting performance.
The M12 version was developed for efficient operation in standard industrial automation solutions., Ø12 x 50 mm sensors offer universal dimensions suited to typical installations.

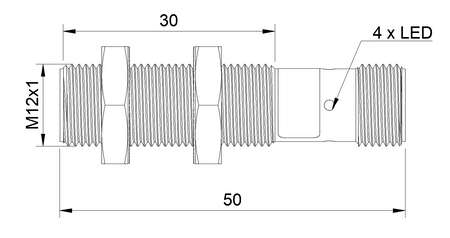

Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 50 mm, stable mechanical construction
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Detection of elements in automated vehicle production systems.
- Application in material feeding and unloading systems.
- Control of labeling and dosing machines.
- Position control of grippers and robotic actuators.
- Detection of position in internal transport systems.
Features and Benefits
- Signal repeatability in mass production processes
- Resistance to intensive cyclic operation
- High precision positioning of elements in robotic systems
- High resistance to harsh industrial conditions
When to choose this model
- Ensures higher mechanical resistance.
- Ensures stability in variable conditions.
- Suitable for medium and large-scale systems.
- Performs well in large-scale automation systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
