Inductive sensor M12 50 mm connector M12 NPN NO & NC Sn = 10 mm
- ● M12 enables efficient system design
- ● Long version for open mounting areas
- ● Sensor for long-range applications
- ● Plug-in – ready for standard installations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

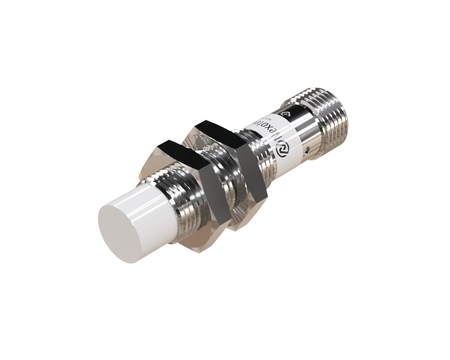

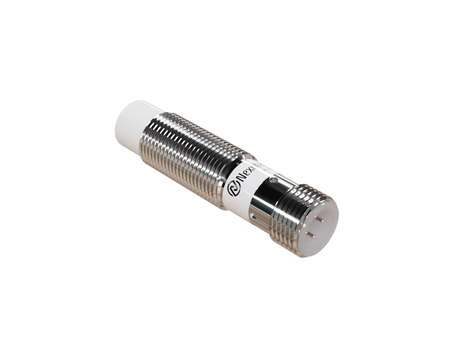

A Teflon-faced inductive sensor NIS12355 is an excellent choice for automation systems where reliability and repeatable performance are essential.
A product from the M12 series offers an optimal combination of durability and measurement accuracy in industrial environments., The Ø12 x 50 mm size allows secure and stable mounting.

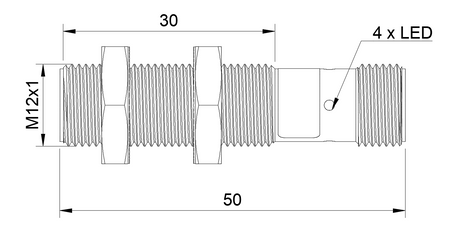

Technical specification:
- Diameter: M12, stable operation in industrial conditions
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Use in assembly processes and verification of correct part positioning.
- Support for automatic clamping systems.
- Control of production line synchronization.
- Use in automatic assembly systems.
- Application in OEM machine automation.
Features and Benefits
- Signal repeatability in mass production processes
- Stable operation in CNC machines and automation systems
- Resistance to intensive cyclic operation
- Reliable operation in safety and control systems
When to choose this model
- Good for operation in moderately demanding environments.
- Suitable for detecting larger objects.
- Suitable for medium and large-scale systems.
- Suitable for medium-sized machines.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
