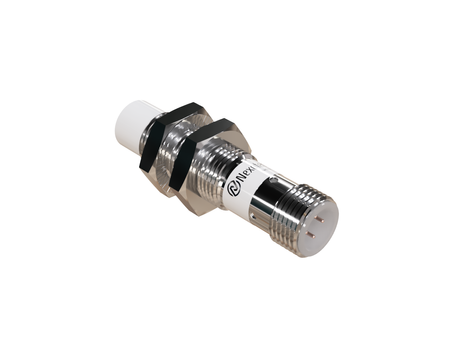

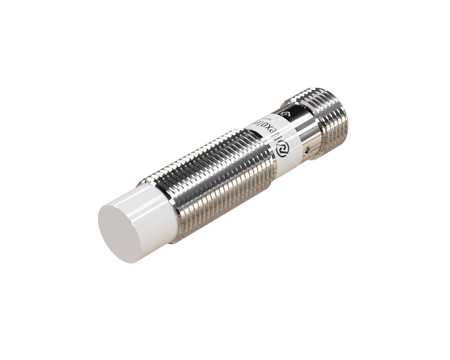

Inductive sensor M12 50 mm connector M12 NPN NC Sn = 8 mm
- ● M12 enables flexible system planning
- ● Long design for high-space systems
- ● Sn distance for operation at farther distances
- ● Plug-in – resistant to cleaning agents and chemicals
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A compact inductive sensor NIS12332 with a Teflon face is a reliable solution for control systems and production lines.
The M12 inductive sensor belongs to a series of industrial automation components providing precision and a compact design., Uniwersalna wielkość Ø12 x 50 mm ułatwia integrację w wielu konstrukcjach.

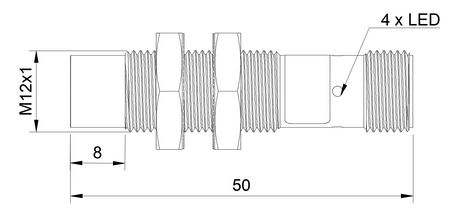

Technical specification:
- Diameter: M12, standard size for most machine applications
- Length: 50 mm, stable mechanical construction
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Use in positioning and production synchronization systems.
- Application in tool change and positioning systems.
- Control of production line synchronization.
- Application in robotic axis positioning systems.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- High response speed in packaging lines
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Chosen for applications requiring increased detection distance.
- Suitable for continuous operation.
- Often used in heavier industrial automation.
- Used in continuous processes.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
