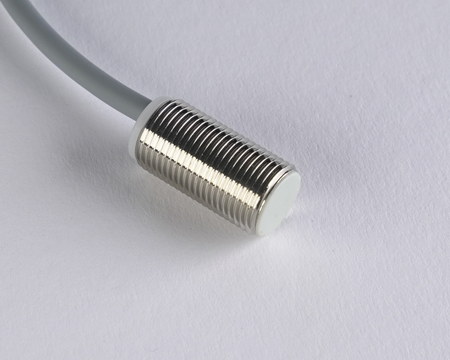

Inductive sensor M12 22 mm cable 2m NPN NO Sn = 4 mm
- ● M12 allows easy installation in medium-scale setups
- ● Short housing for limited spaces
- ● Standard operating zone for industrial systems
- ● With cable – chemically and mechanically durable
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS12021-K2
An advanced Teflon-faced inductive sensor NIS12021-K2 supports the efficient operation of industrial machines and equipment.
The M12 model ensures effective operation in production installations and control systems., The Ø12 x 22 mm format allows easy adaptation to standard mounting brackets.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 22 mm, limited axial housing length
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: 2 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Position control of parts in automotive assembly lines.
- Application in CNC machines for position control of elements and tools.
- Control of production line synchronization.
- Support for synchronization of robots and machines.
- Control of processes in complex mechanical systems.
Features and Benefits
- High reliability in automated automotive production lines
- Stable operation in CNC machines and automation systems
- High response speed in packaging lines
- Reliable synchronization of machines and robots
When to choose this model
- Chosen for applications requiring increased detection distance.
- Performs well in 24/7 production lines.
- Used in installations with higher mounting tolerance.
- Used in mass production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
