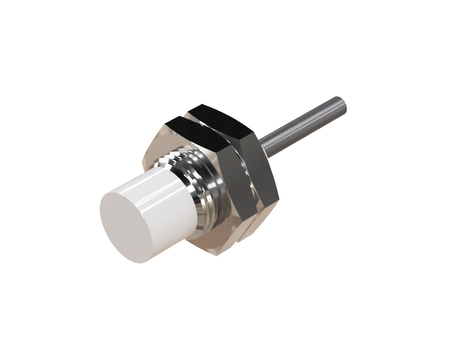

Inductive sensor M12 22 mm cable 2m NPN NC Sn = 10 mm
- ● M12 ideal for medium mounting spaces
- ● Compact housing for small systems
- ● Sn distance with extended sensing zone
- ● With cable – resistant to dirt and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A professional inductive sensor NIS12052-K2 with a Teflon sensing face performs exceptionally well in applications requiring high reliability.
This M12 inductive sensor was designed for integration with automation and process control systems., Thanks to its diameter, Ø12 x 22 mm allows easy adaptation to constructions.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 22 mm, low weight and compact sensor format
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 2 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Position control of parts in automotive assembly lines.
- Application in material feeding and unloading systems.
- Use in automation of packaging and sorting processes.
- Support for synchronization of robots and machines.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Signal repeatability in mass production processes
- High detection precision in machining environments
- Resistance to intensive cyclic operation
- Compatibility with industrial robots and EOAT systems
When to choose this model
- Good for operation in moderately demanding environments.
- Suitable for detecting larger objects.
- Used in transport systems.
- Used in applications requiring stable operation.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
