Diffuse photoelectric sensor connector M8 PNP NO&NC, Sn=350 mm
- Diffuse photoelectric sensor in a square Q31 housing, 31 x 20 x 12 mm. Detects non-metallic objects up to 350 mm with no reflector. PNP output with NO and NC at once, 10-30 V DC, M8 4-pin connector. PBT housing, IP67, sensitivity trimmer.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

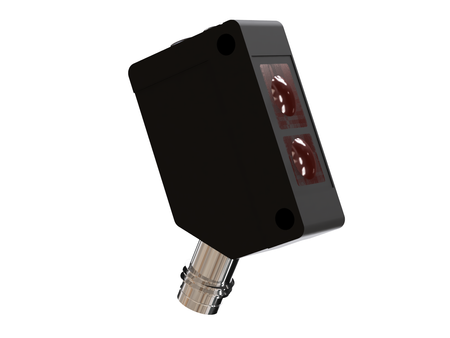

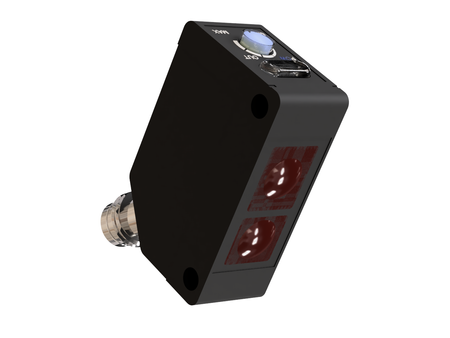

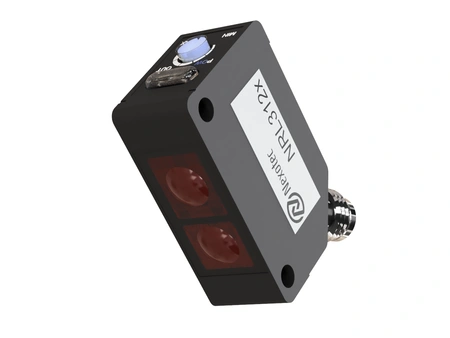

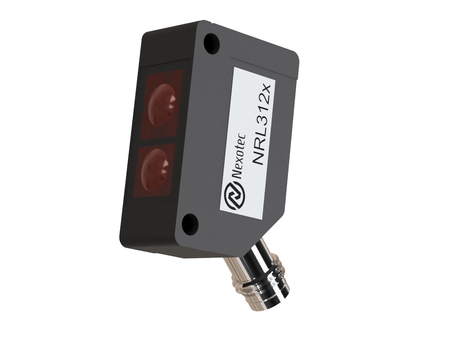

The NRL31205 photoelectric sensor works in diffuse mode: emitter and receiver share one housing and detection occurs when the infrared beam is reflected back from the object. The 350 mm range is specified for a white matt card 200 x 200 mm.

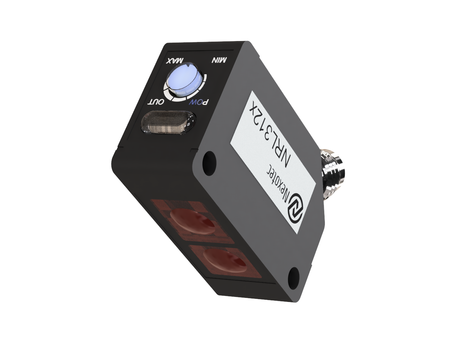

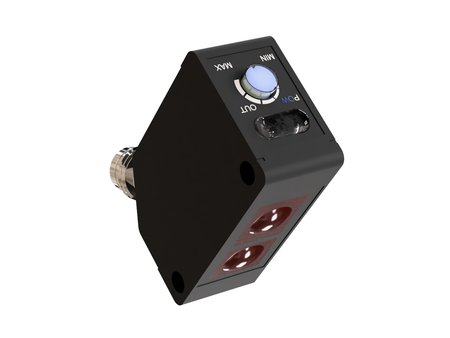

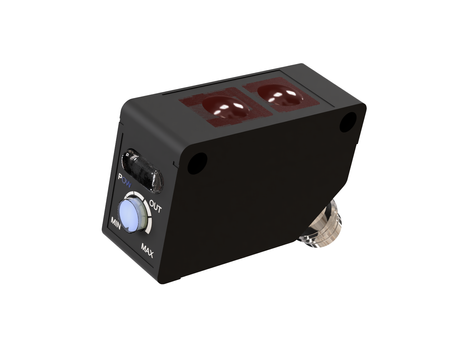

The square Q31 housing measuring 31 x 20 x 12 mm in PBT fits where there is no room for a cylindrical sensor. Sensitivity is set with a trimmer and two LEDs show the output state and the presence of supply voltage.
Technical specification:
- Sensor type: photoelectric, diffuse mode
- Sensing range: 350 mm, tolerance ±10% Sn, hysteresis 15%

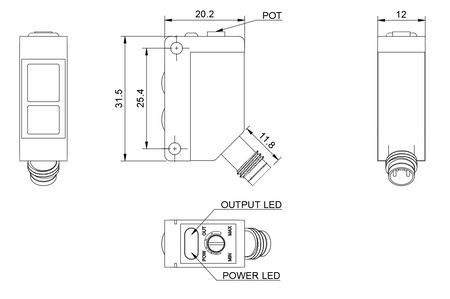

- Housing: square Q31, 31 x 20 x 12 mm, PBT
- Output type: PNP
- Switching function: NO & NC, both contacts available at once
- Supply voltage: 10-30 V DC, residual ripple up to 10%
- Maximum output current: 100 mA, voltage drop up to 2.0 V
- Switching frequency: 500 Hz, response time 1 ms
- Light source: infrared 880 nm, ambient light immunity above 5000 lx
- Protection: short-circuit and reverse polarity
- Protection degree: IP67, operating temperature -25 to +55 °C

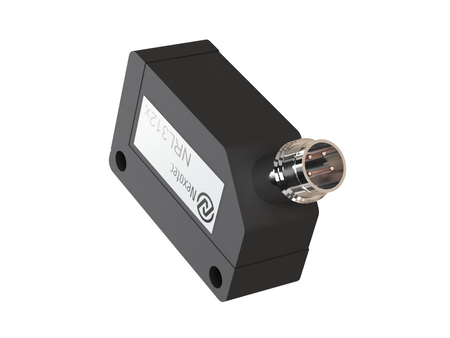

- Connection: M8 connector, 4 pins
Applications
- Detection of non-metallic objects such as cartons, plastics, wood and glass, where an inductive sensor cannot work.
- Presence control of packaging on conveyors and in packaging machines.
- Counting parts moving along a belt.
- Level control of material in hoppers and feeders.
- Position control of pallets and containers in machine nests.
Benefits and features
- 350 mm range with no reflector and no separate emitter on the opposite side
- NO and NC outputs at the same time, so one stock item covers both logics
- Sensitivity trimmer allows tuning to the colour and texture of the object
- Short-circuit and reverse polarity protection
- Flat 12 mm housing for mounting in tight machine pockets
When to choose this model
- When the detected material is not metal.
- When the distance exceeds the range of inductive sensors.
- When there is no room for a reflector or emitter on the opposite side.
- When the controller needs NO and NC signals at the same time.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
