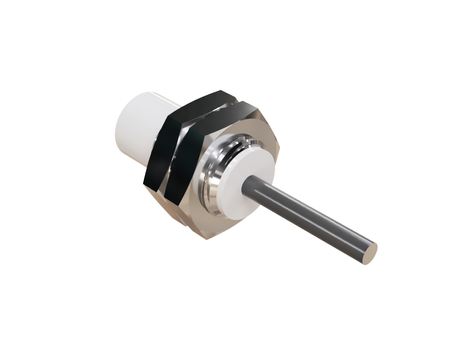

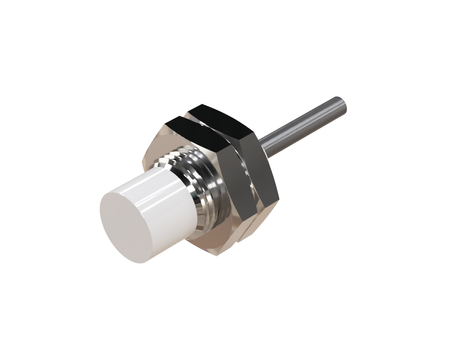

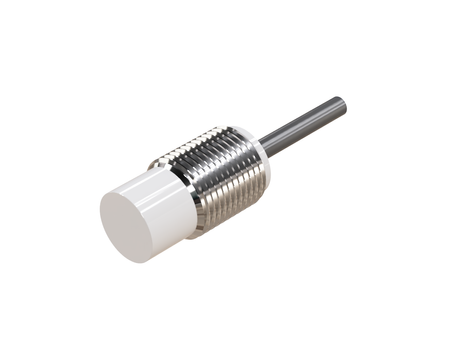

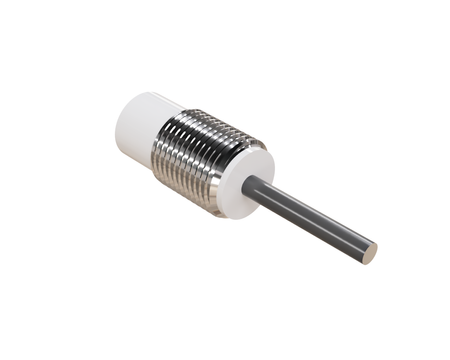

Inductive sensor M12 22 mm cable 2m PNP NC Sn = 10 mm
Symbol:
NIS12054-K2
Inductive sensor M12 22 mm cable 2m PNP NC Sn = 10 mm
- ● M12 simplifies component placement in production lines
- ● Housing for small panels and machines
- ● Sensor with high operating range
- ● With cable – durable for daily operation
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS12054-K2
An inductive sensor NIS12054-K2 with a Teflon sensing face is a proven solution for applications requiring high abrasion resistance.
The M12 variant fits into a range of sensors used in control and process automation applications., The Ø12 x 22 mm size ensures stability without occupying excessive space.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 22 mm, design intended for tight installation spaces
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NC, opens upon object detection
- Cable length: 2 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Detection of workpieces in machining fixtures.
- Control of production line synchronization.
- Control of cycle operation in automated production lines.
- Detection of position in internal transport systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Fast response in dynamic machining processes
- Precise synchronization of production processes
- High resistance to harsh industrial conditions
When to choose this model
- Suitable for more demanding industrial applications.
- Chosen for applications requiring increased detection distance.
- Good for upgrading industrial systems.
- Performs well in large-scale automation systems.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS12054-K2
Producer code
5907367813258
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M12
Switching distance
10 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
400Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES

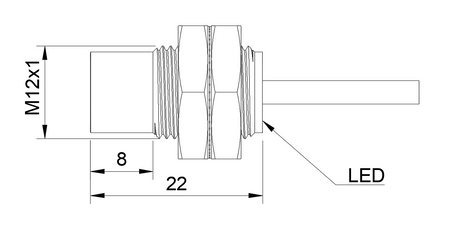

Dimensions
Ø12 x 22 mm
Sensor length
22 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Number of pins
n/d
Cable length
2 m
Cable diameter
⌀ 4 mm
Cable
3 x 0,15 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS12054-K2
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
